Bengoh
Download PDF data sheet

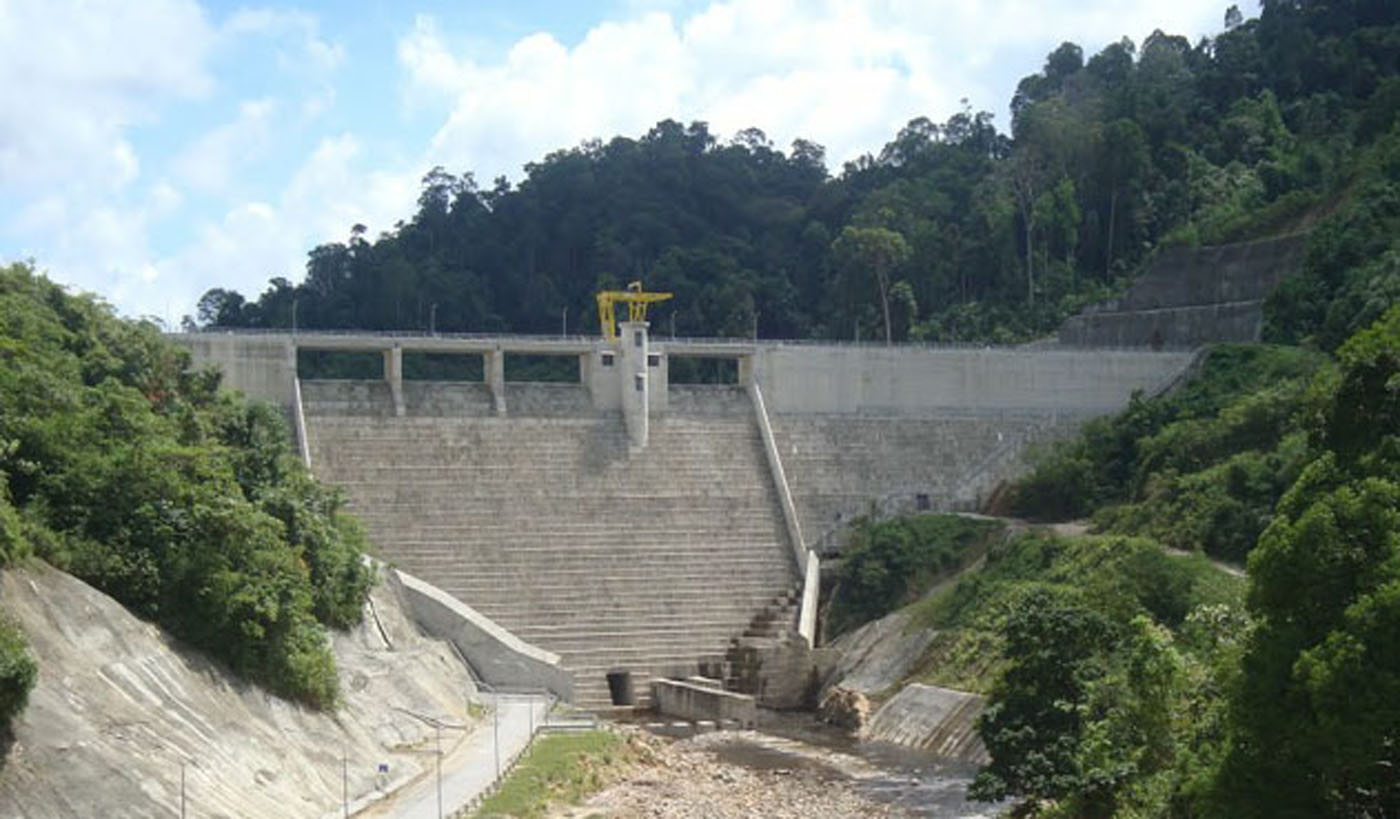

Bengoh completed
Particulars
Owner: unknown
Designer: KTA, Sarawak
Contractor: Naim Cendera (SinoHydro Co. Ltd. dam sub-Contractor)
Statistics
Type: Gravity
Purpose(s): Water Supply
Reservoir capacity: 144 m3x106
Height: 63 metres
Length: 267 metres
Volume of RCC: 130 m3x103
Total volume: 172 m3x103
Construction Dates
Start of Project: 06/07 (June 2007)
Start of RCC: 06/09 (June 2009)
End of RCC: 05/10 (May 2010)
End of Project: —/12 (— 2012)
Country: Malaysia
River: Sungai Bengoh

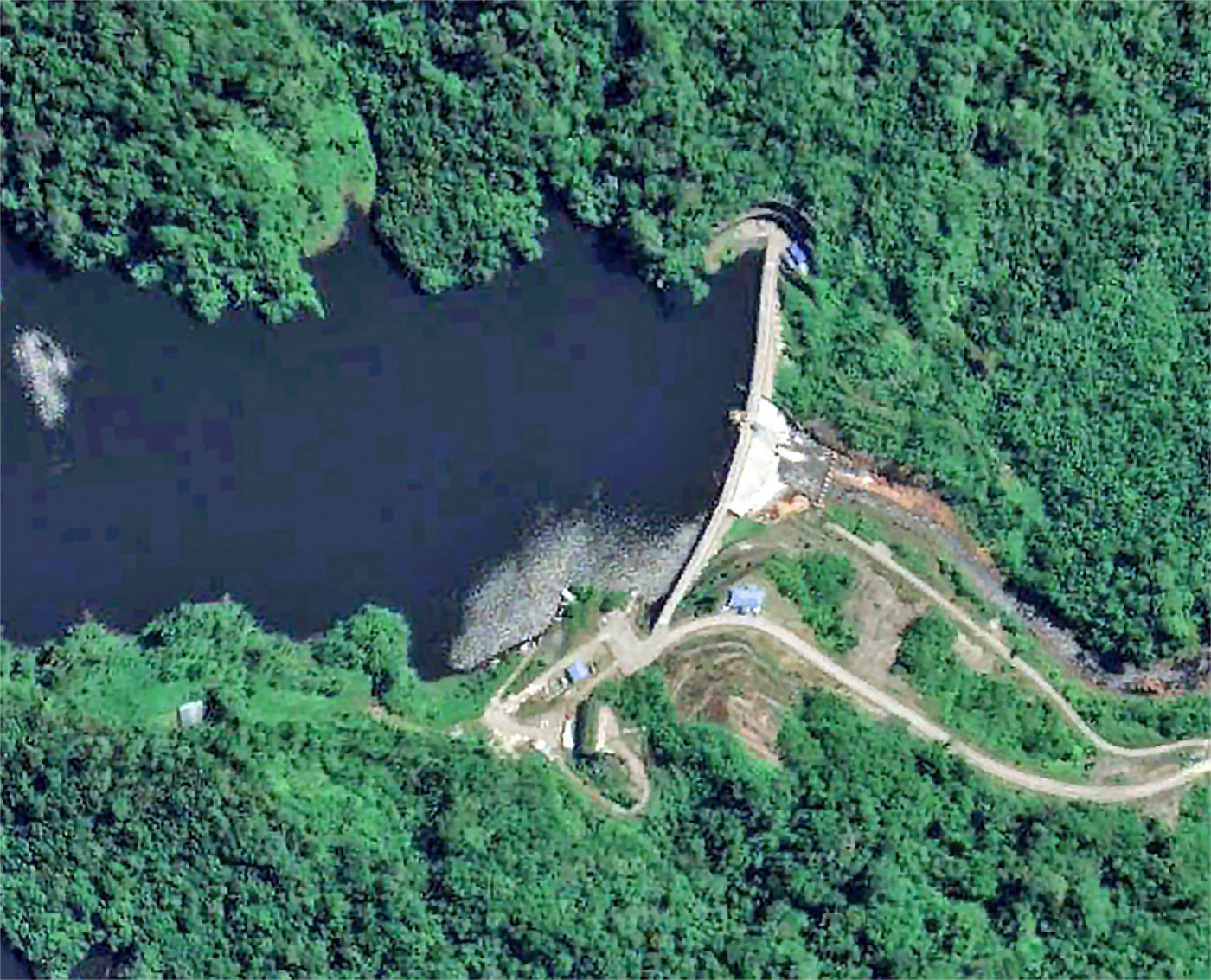

DMS Co-ordinates: 1˚14'30.81"N, 110˚14'29.61"E
DD Co-ordinates: 1.241964, 110.241554
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | RCC against formwork (GEVR/GE-RCC) |
Downstream
| Slope | Type |
|---|---|
| 0.80 | RCC against formwork (GEVR/GE-RCC) [stepped face] |
Spillway
| Slope | Type |
|---|---|
| 0.80 | RCC against formwork (GEVR/GE-RCC) [stepped face] |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 3000 |
Cementitious material
| Cement (kg/m3) |
|---|
| 60 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 120 | Low-lime flyash (ASTM Class F) |
