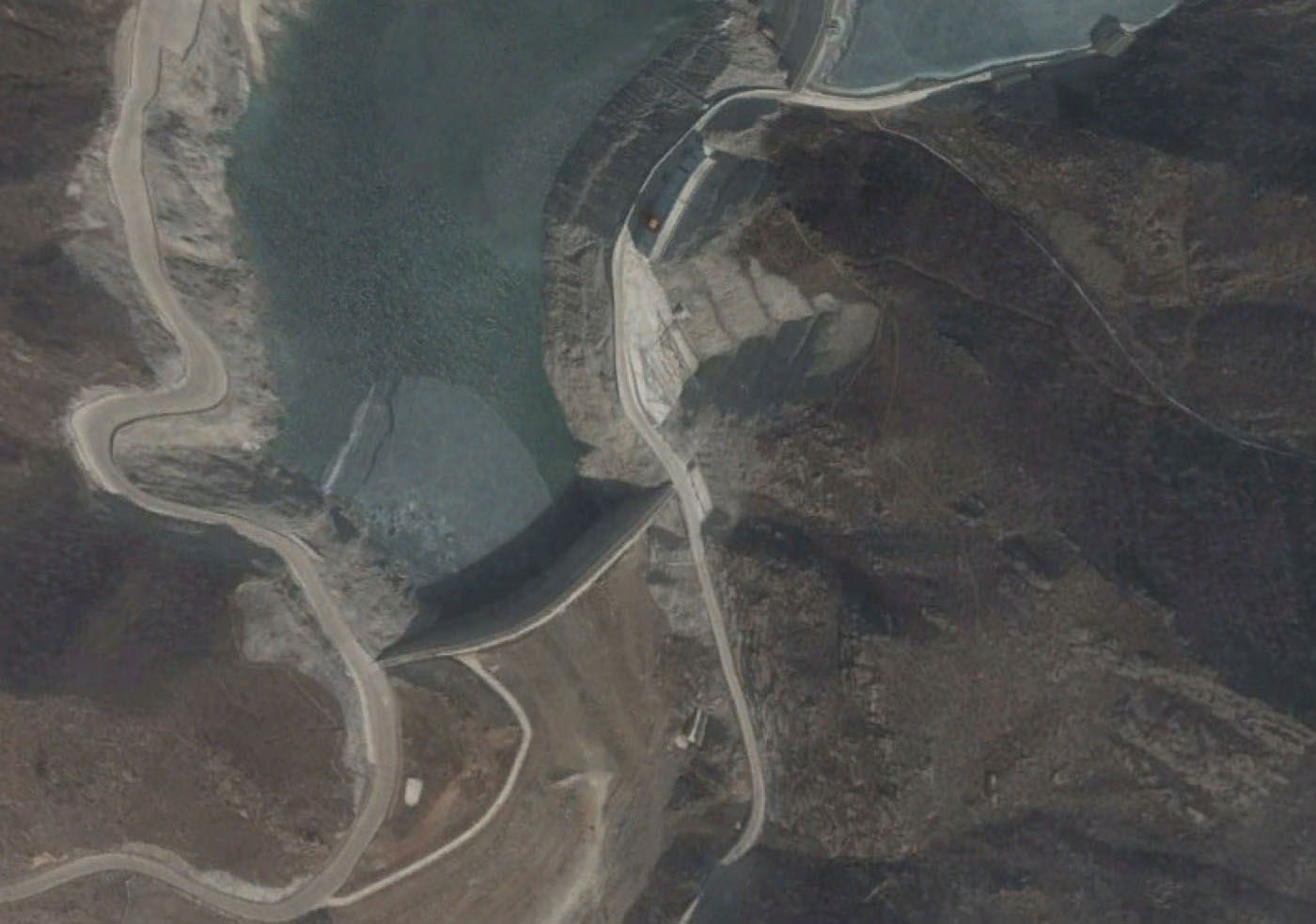

Huhehaote (Hohhot) PSS - Downstream lower dam
Download PDF data sheet

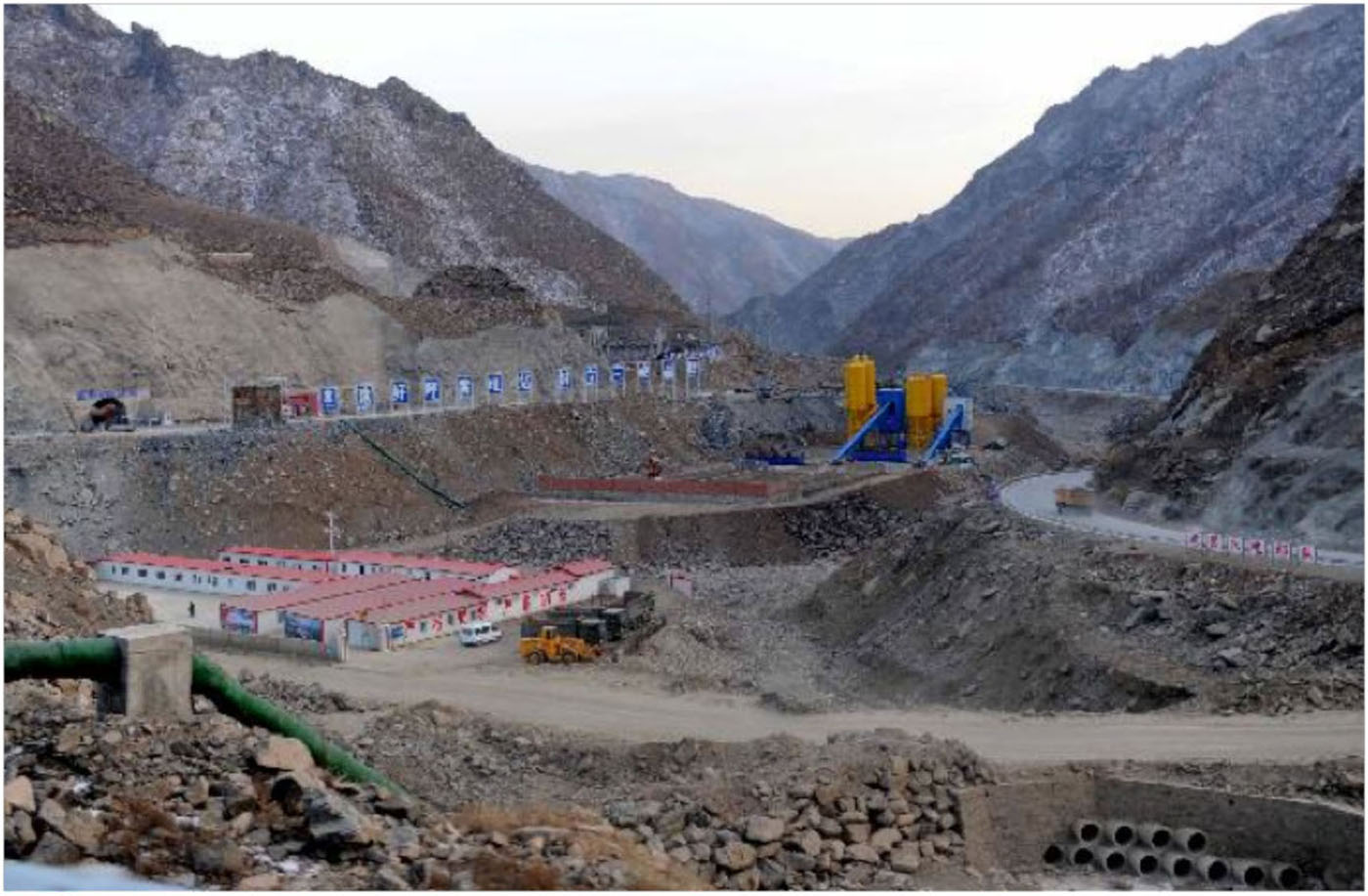

Huhehaote (Hohhot) PSS - Downstream lower dam under construction
Particulars
Owner: unknown
Designer: Beijing Institute of Investigation and Design for Hydropower Projects
Contractor: unknown
Statistics
Type: Gravity
Purpose(s): Hydropower
Reservoir capacity: 7 m3x106
Height: 58 metres
Length: 308 metres
Volume of RCC: 205 m3x103
Total volume: 717 m3x103
Construction Dates
Start of Project: —/12 (— 2012)
Start of RCC: —/12 (— 2012)
End of RCC: —/13 (— 2013)
End of Project: —/14 (— 2014)
Country: China
River: Halasxinegou
DMS Co-ordinates: 40˚59'12.29"N, 111˚40'59.10"E
DD Co-ordinates: 40.986748, 111.683083
Facings
Upstream
| Slope | Type |
|---|---|
Downstream
| Slope | Type |
|---|---|
Spillway
| Slope | Type |
|---|---|
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
Cementitious material
| Cement (kg/m3) |
|---|
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
