Asana control dam
Download PDF data sheet

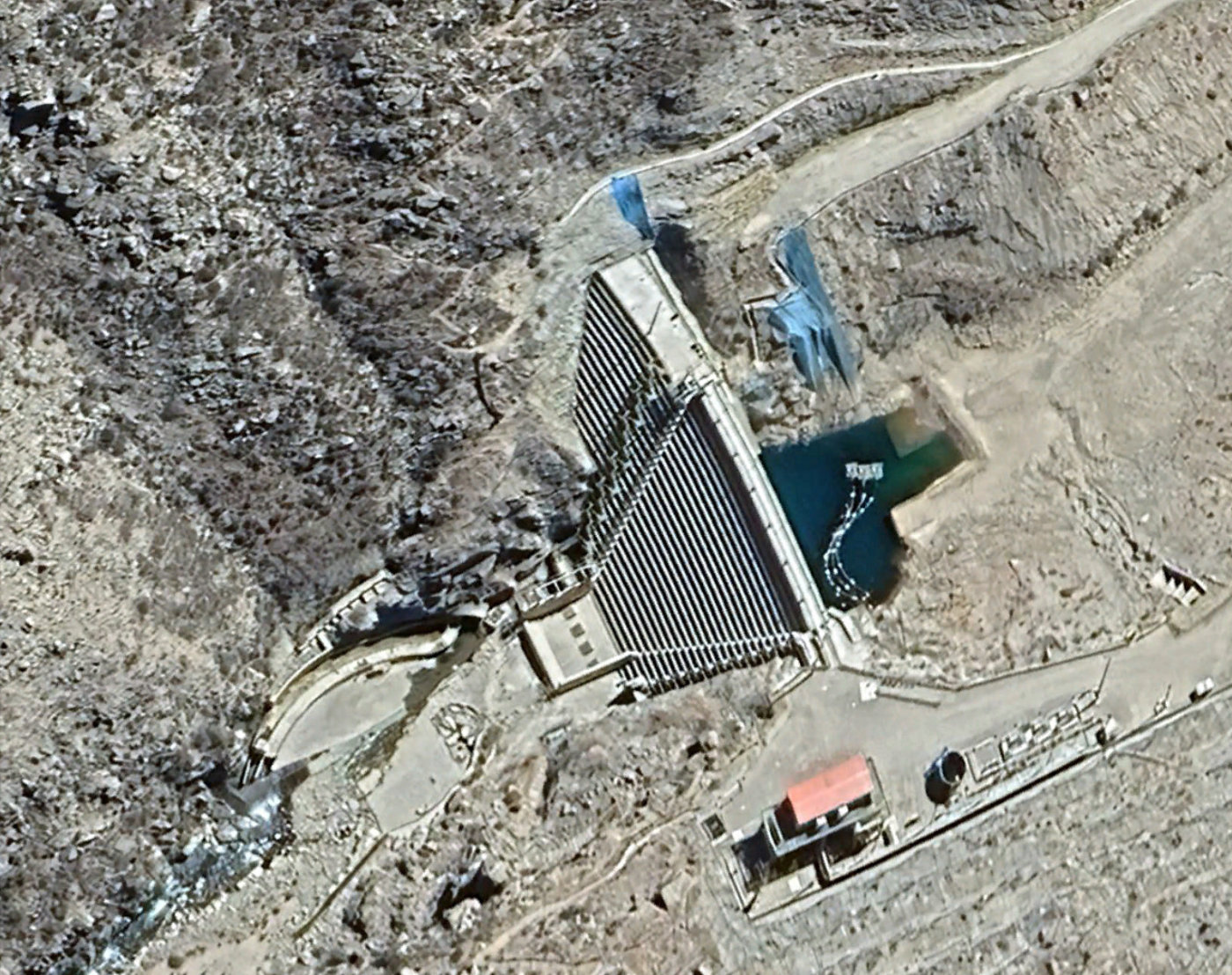

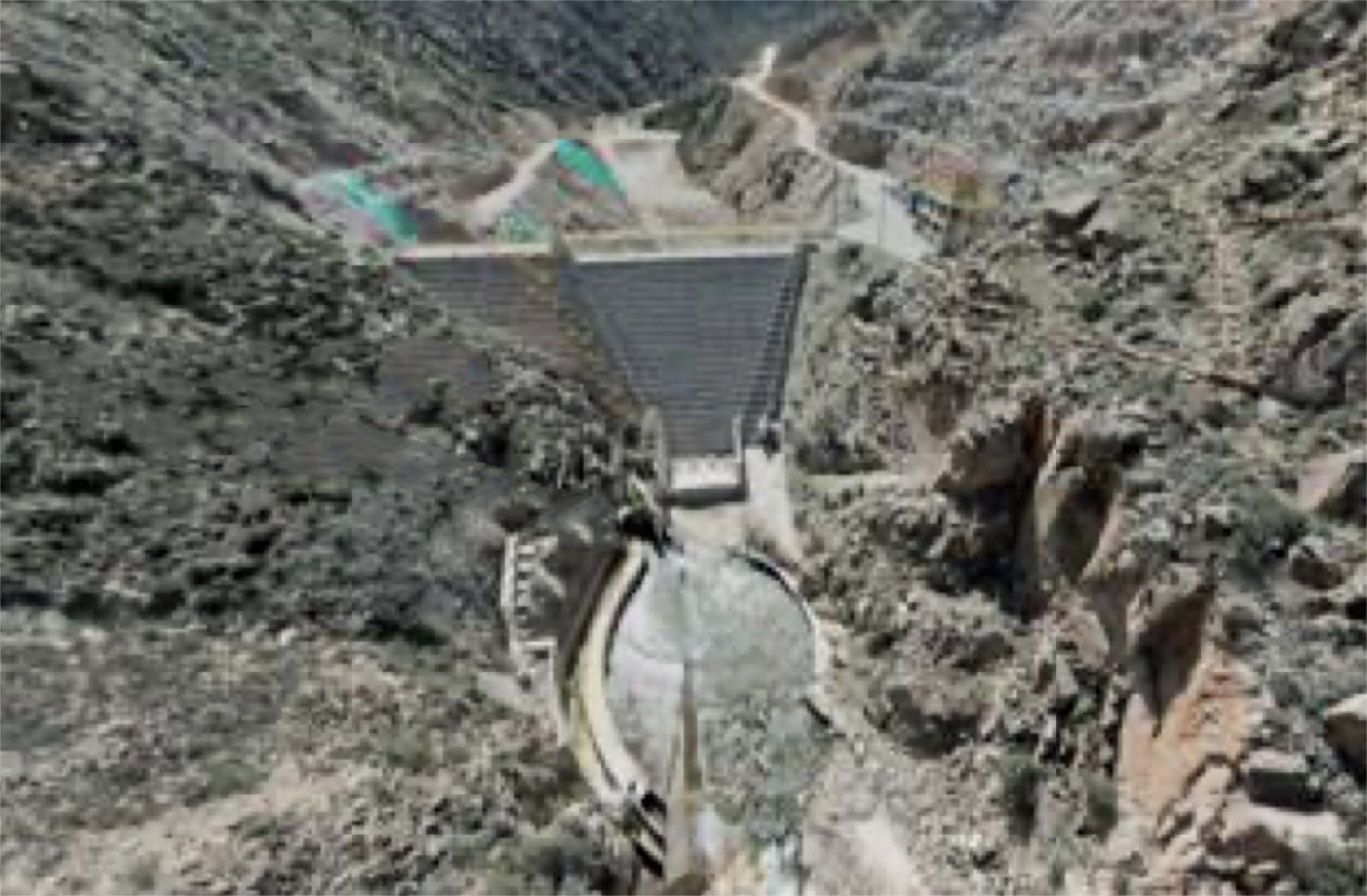

Asana control dam completed
Particulars
Owner: unknown
Designer: IDP
Contractor: unknown
Statistics
Type: Gravity
Purpose(s): unknown
Reservoir capacity: unknown
Height: 25 metres
Length: 67 metres
Volume of RCC: unknown
Total volume: unknown
Construction Dates
Start of Project: —/14 (— 2014)
Start of RCC: —/15 (— 2015)
End of RCC: —/16 (— 2016)
End of Project: —/16 (— 2016)
Country: Peru
River: Asana
DMS Co-ordinates: 17˚6'13.84"S, 70˚39'41.99"W
DD Co-ordinates: -17.103844, -70.661667
Facings
Upstream
| Slope | Type |
|---|---|
| 0.15 |
Downstream
| Slope | Type |
|---|---|
| 0.75 |
Spillway
| Slope | Type |
|---|---|
| 0.75 | [stepped face] |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
Cementitious material
| Cement (kg/m3) |
|---|
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
