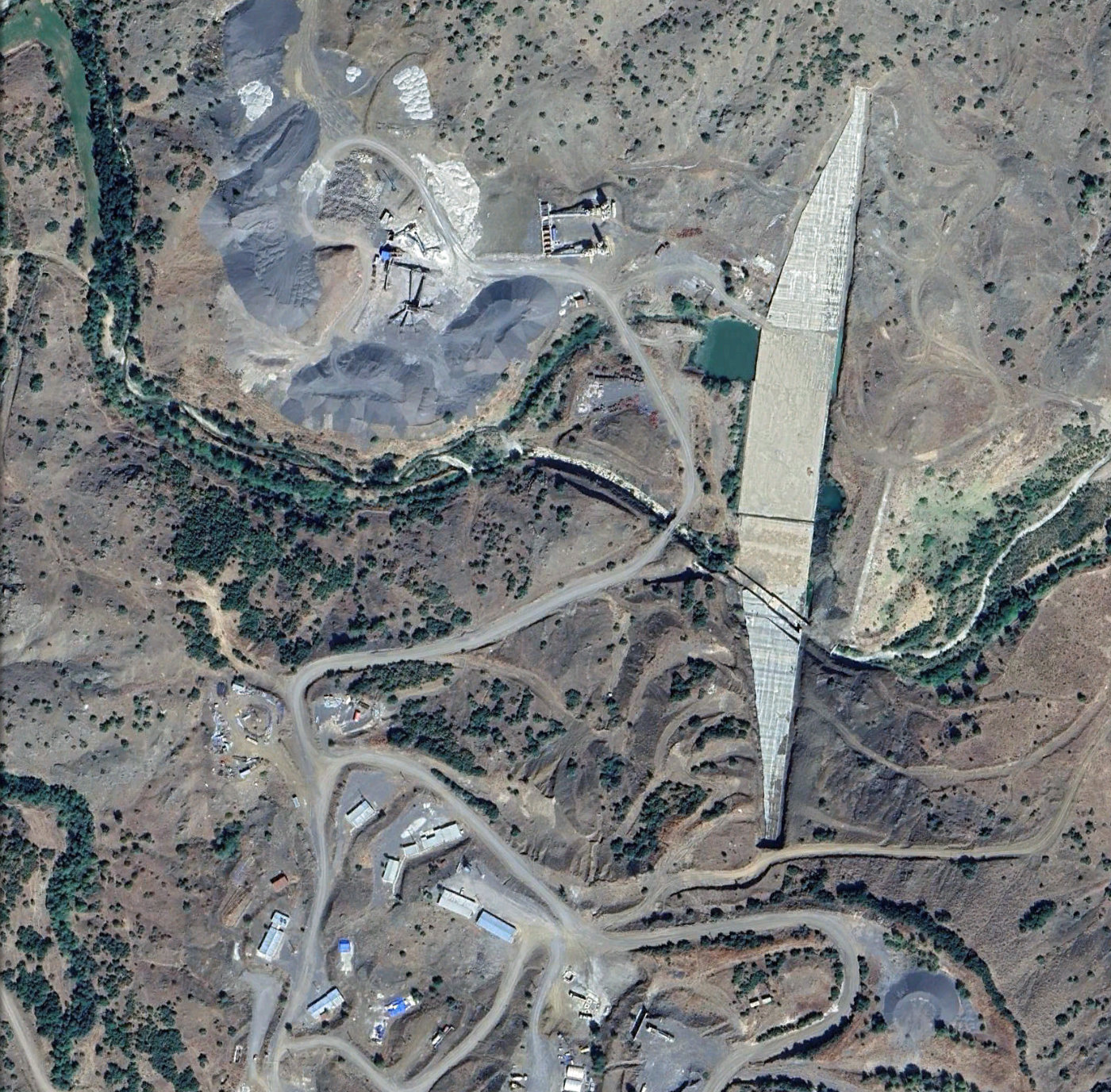

Yozgat (Akdagmadeni) Bahçecik

Download PDF data sheet
Photo coming soon

Particulars

Owner: unknown

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Irrigation

Reservoir capacity: 33 m3x106

Height: 70 metres

Length: 494 metres

Volume of RCC: 614 m3x103

Total volume: unknown

Construction Dates

Start of Project: /15 ( 2015)

Start of RCC: /18 ( 2018)

End of RCC: /23 ( 2023)

End of Project: /24 ( 2024)

Country: Turkey

River: Gökdelen

DMS Co-ordinates: 39˚53'40.68"N, 35˚55'21.49"E

DD Co-ordinates: 39.894630, 35.922638

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.80Traditional concrete against formwork

Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)
300

Cementitious material

Cement (kg/m3)
84
Pozzolan (kg/m3)Pozzolan Type
56Low-lime flyash (ASTM Class F)
