Zintel Canyon
Download PDF data sheet

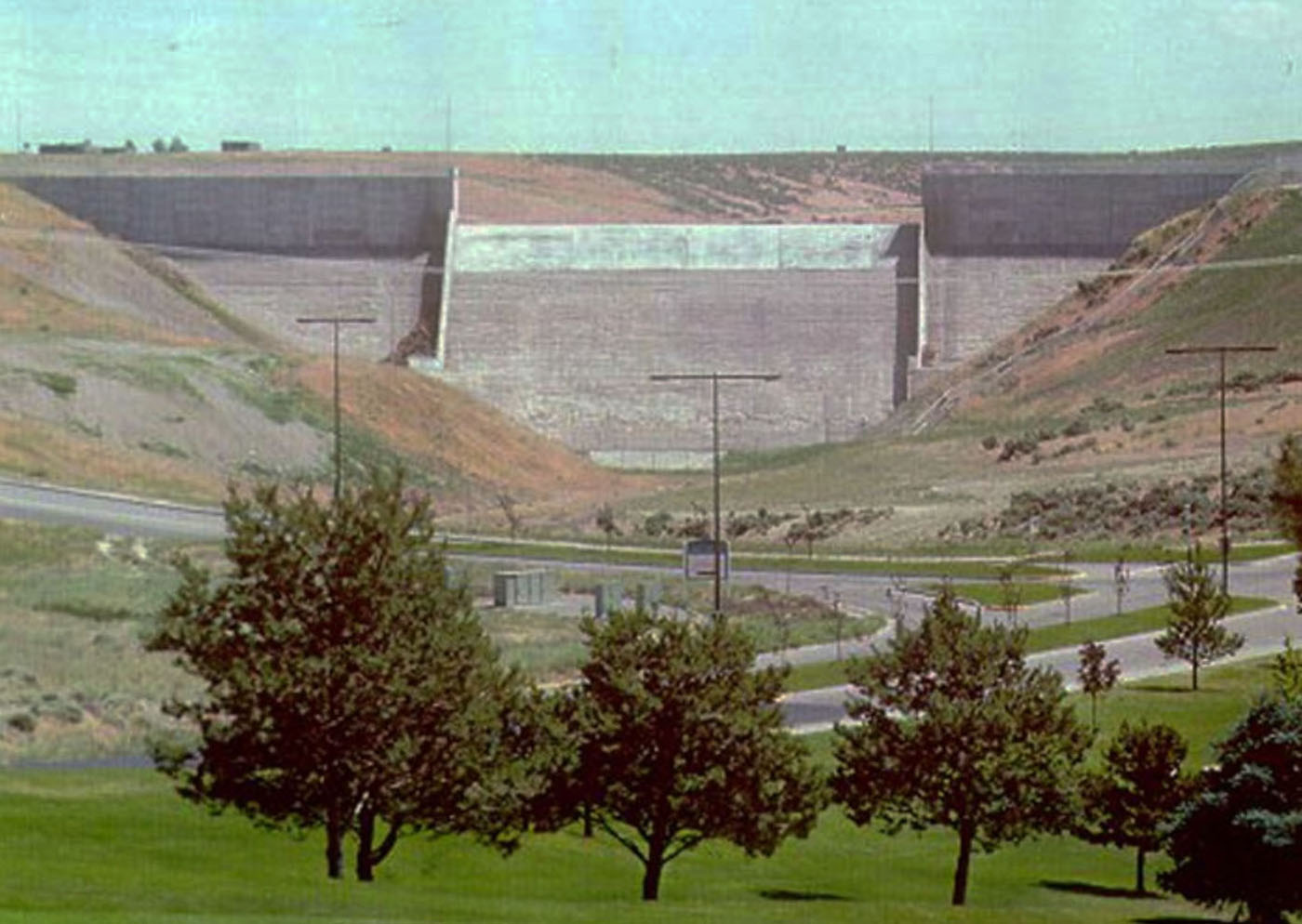

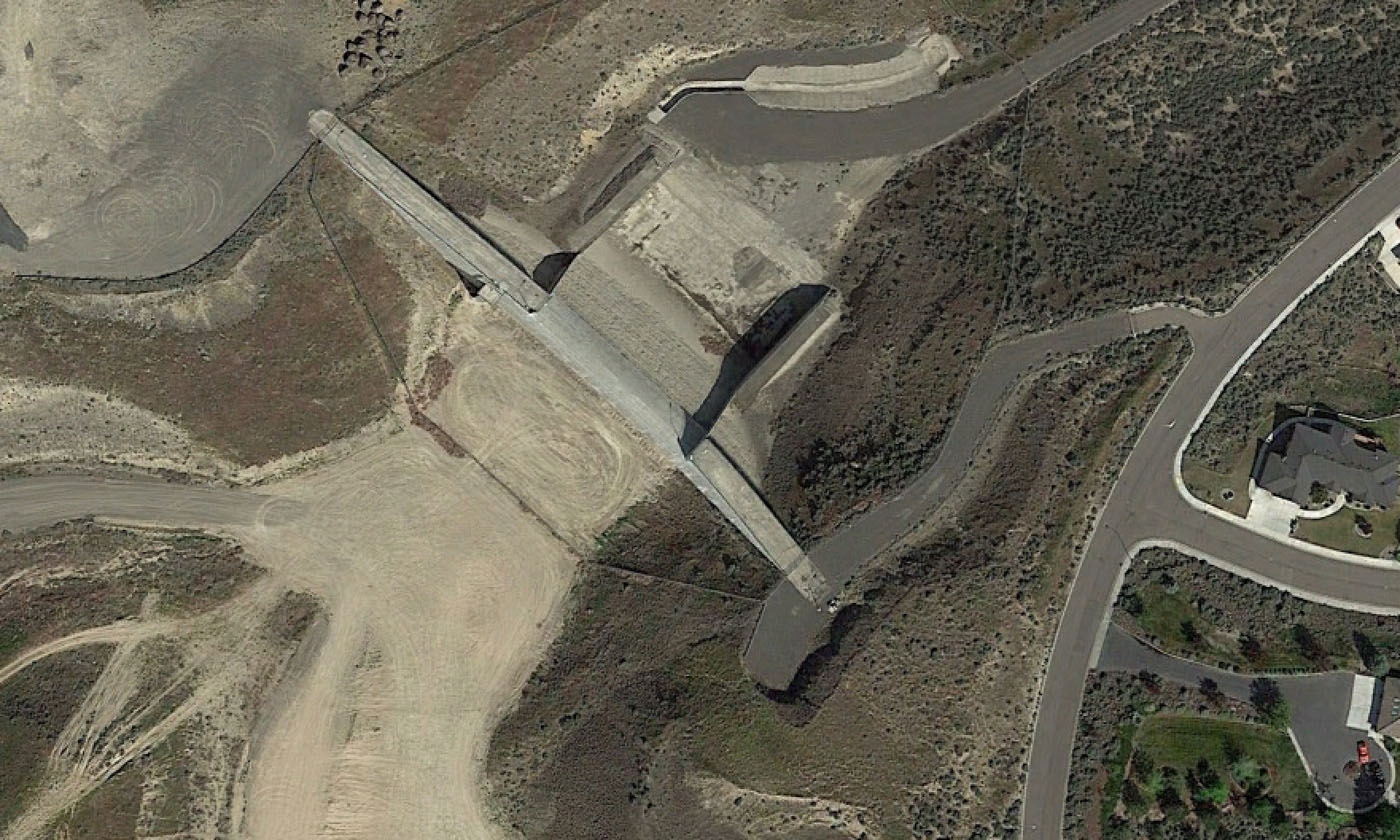

Zintel Canyon completed
Particulars
Owner: unknown
Designer: USACE, Walla Walla District
Contractor: Delhur Industries, In., Port Angeles, Washington
Statistics
Type: Gravity
Purpose(s): Flood Control
Reservoir capacity: 3 m3x106
Height: 39 metres
Length: 158 metres
Volume of RCC: 54 m3x103
Total volume: 55 m3x103
Construction Dates
Start of Project: 03/92 (March 1992)
Start of RCC: 07/92 (July 1992)
End of RCC: 10/92 (October 1992)
End of Project: 12/92 (December 1992)
Country: USA
River: Zintel
DMS Co-ordinates: 46˚10'29.19"N, 119˚11'1.47"W
DD Co-ordinates: 46.174774, -119.183739
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | RCC against precast concrete panels |
Downstream
| Slope | Type |
|---|---|
| 0.85 | Unformed face of RCC |
Spillway
| Slope | Type |
|---|---|
| 0.85 | Unformed face of RCC |

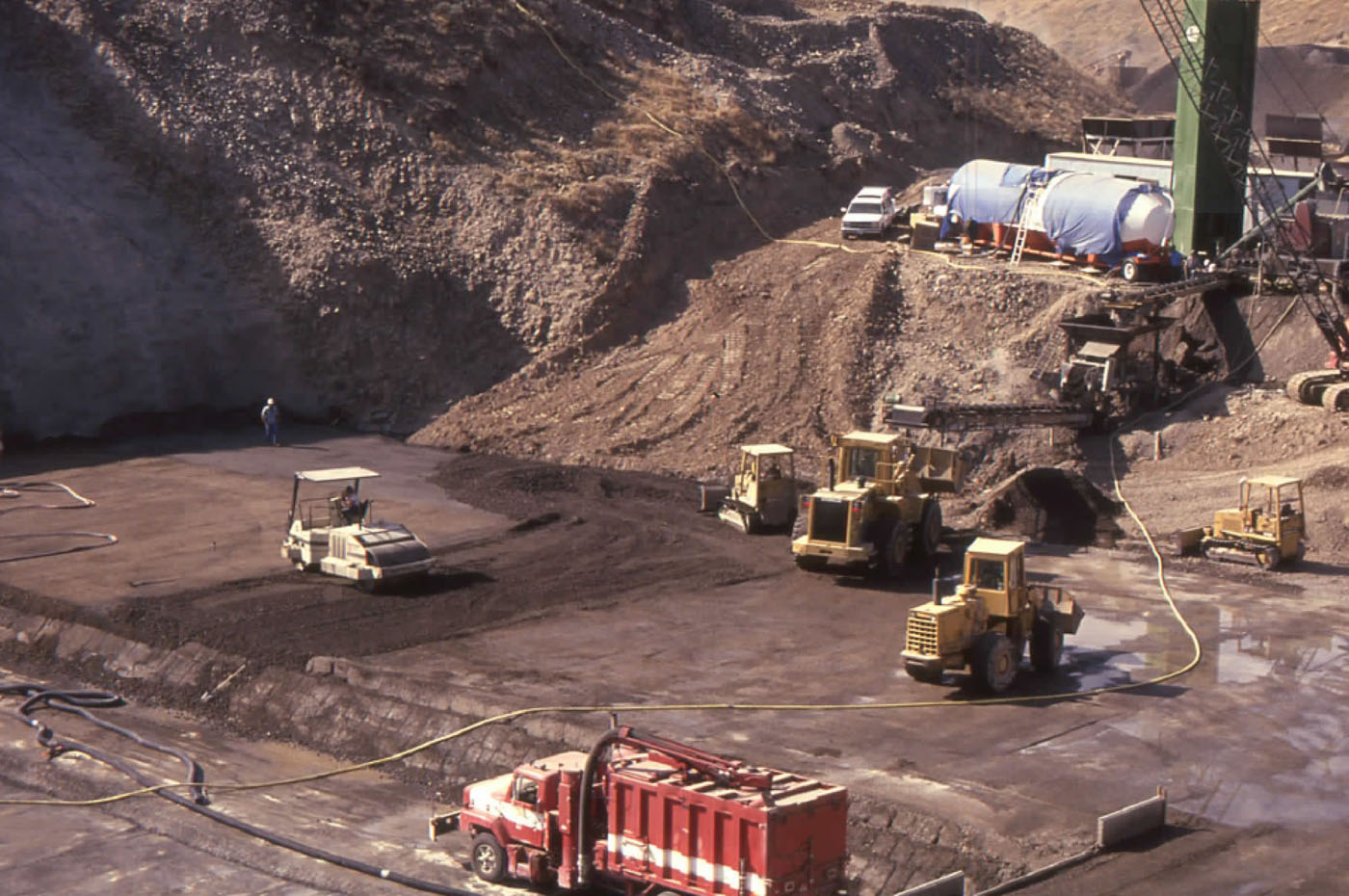

Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 74 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 0 | No pozzolan used - |
