A Vuong
Download PDF data sheet

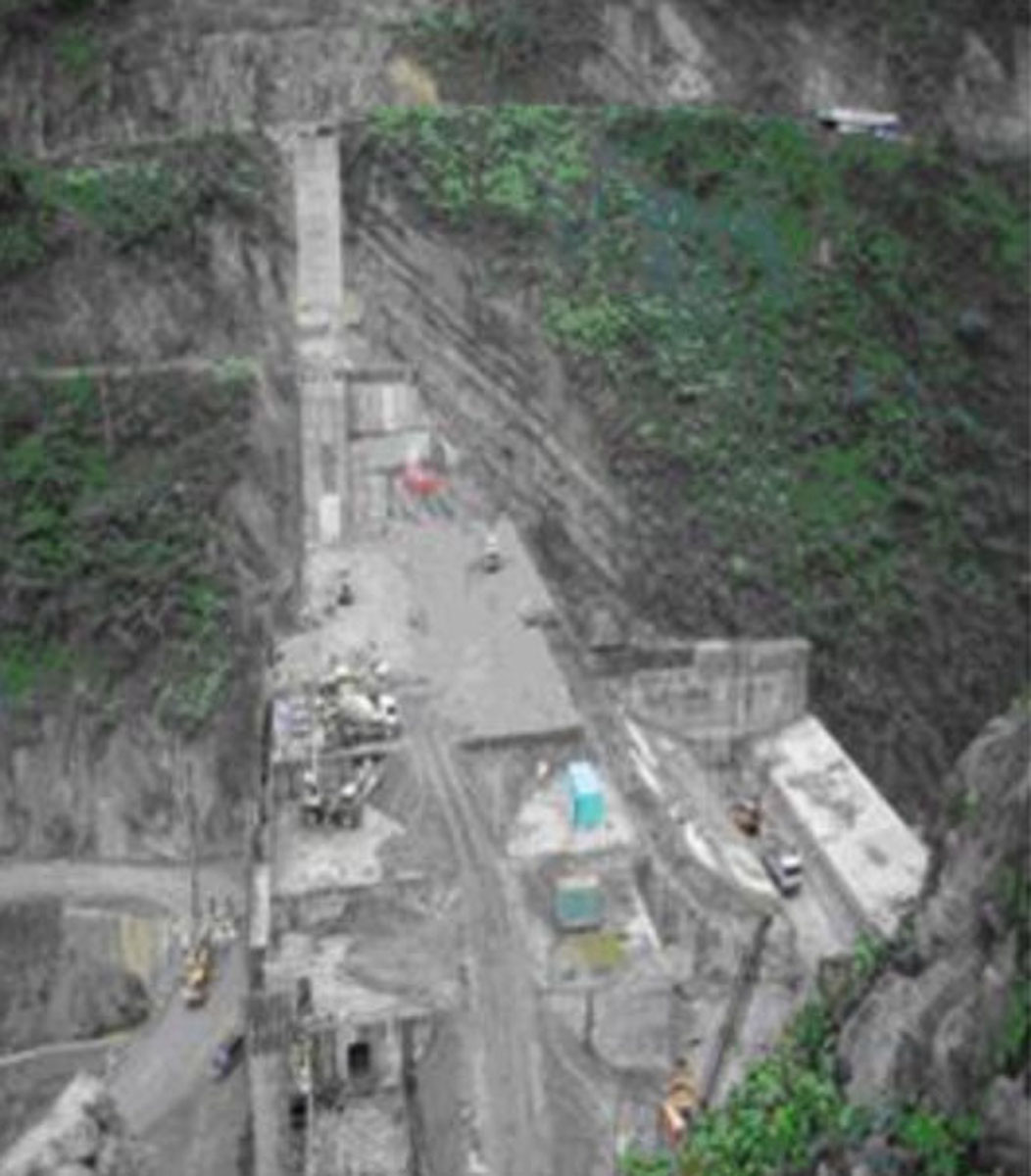

A Vuong under construction
Particulars
Owner: unknown
Designer: PECC2 (Power Engineering Consulting Company Nº2)
Contractor: GCC4
Statistics
Type: Gravity
Purpose(s): Hydropower
Reservoir capacity: 340 m3x106
Height: 83 metres
Length: 240 metres
Volume of RCC: 260 m3x103
Total volume: 350 m3x103
Construction Dates
Start of Project: 08/03 (August 2003)
Start of RCC: 01/06 (January 2006)
End of RCC: 10/07 (October 2007)
End of Project: 11/08 (November 2008)
Country: Vietnam
River: Vugia Thubon
DMS Co-ordinates: 15˚47'58.63"N, 107˚37'2.71"E
DD Co-ordinates: 15.79962, 107.617416
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | Traditional concrete against formwork |
Downstream
| Slope | Type |
|---|---|
| 0.80 | Traditional concrete against formwork |
Spillway
| Slope | Type |
|---|---|
| 1.00 | Traditional concrete against formwork |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 90 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 150 | Natural pozzolan (ASTM Class N) |
