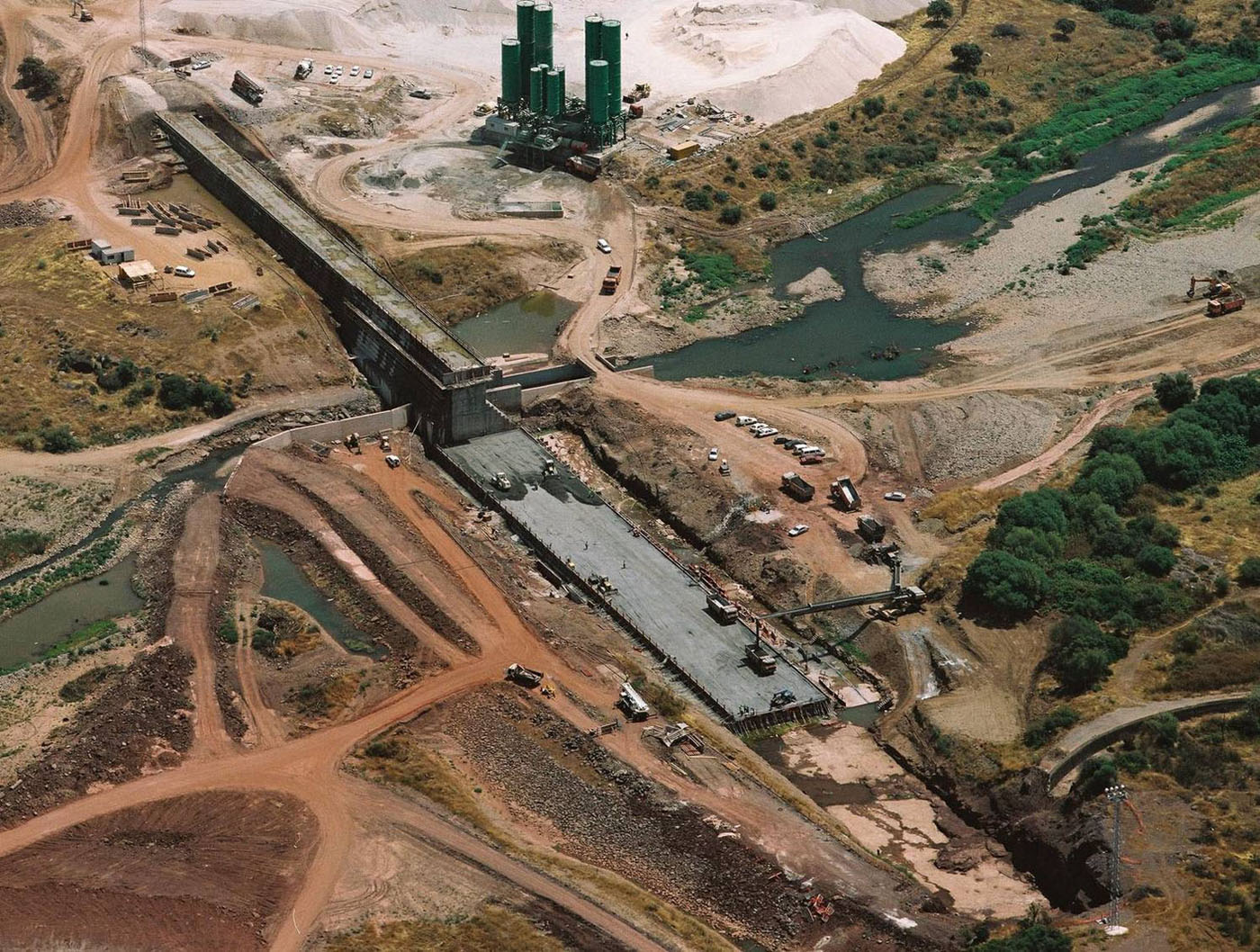

El Esparragal
Download PDF data sheet

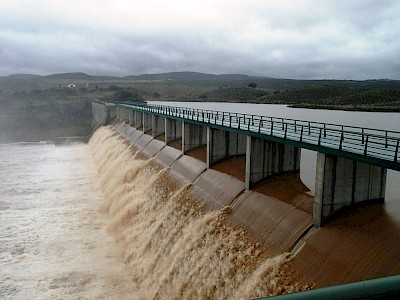

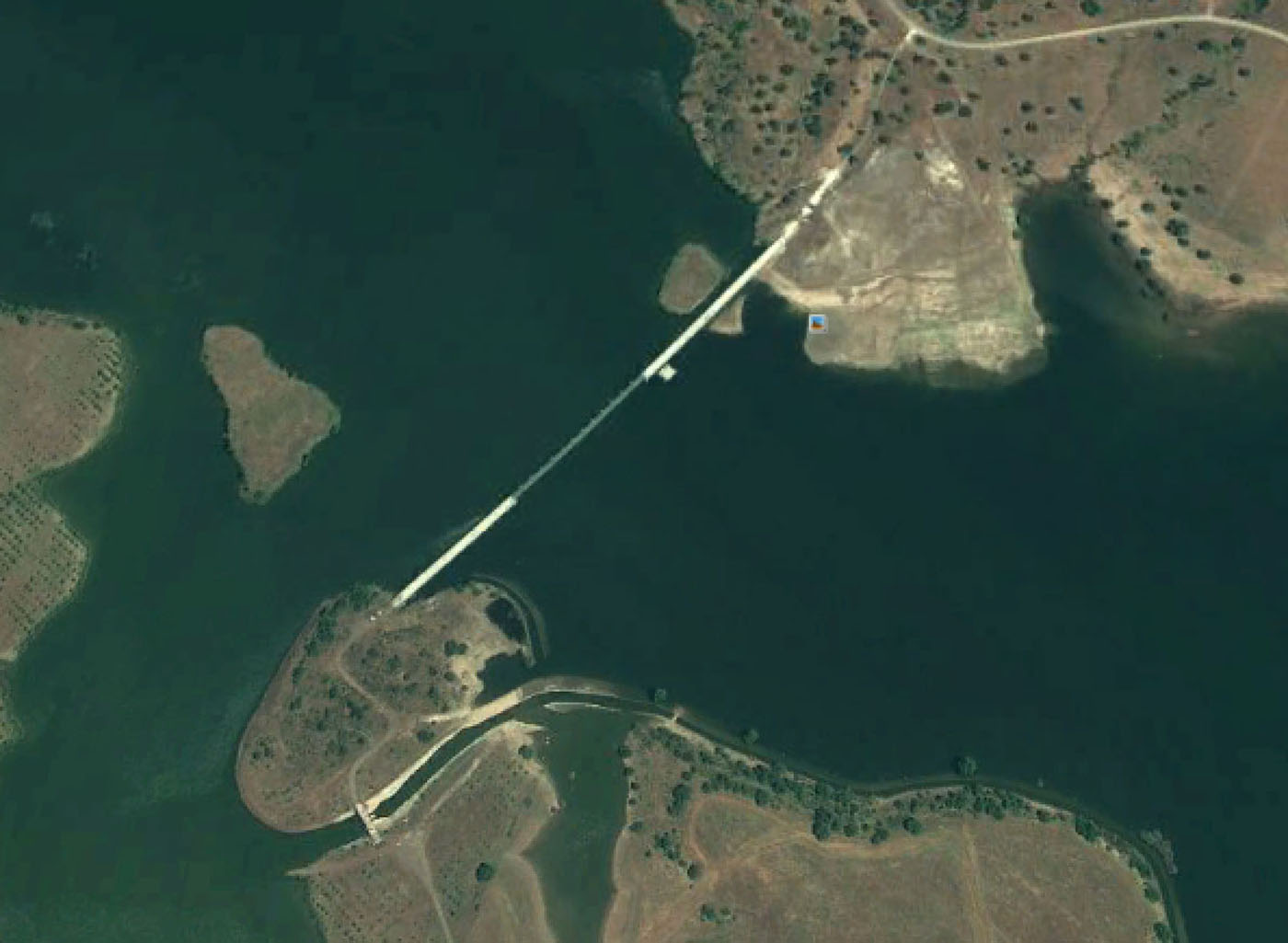

El Esparragal completed
Particulars
Owner: unknown
Designer: Manuel Gonzalez Sereno (ATE)
Contractor: Ferrovial - Agroman/Sando J.V.
Statistics
Type: Gravity
Purpose(s): Environmental
Reservoir capacity: 5 m3x106
Height: 21 metres
Length: 383 metres
Volume of RCC: 62 m3x103
Total volume: 89 m3x103
Construction Dates
Start of Project: —/02 (— 2002)
Start of RCC: 05/03 (May 2003)
End of RCC: 08/03 (August 2003)
End of Project: 03/04 (March 2004)
Country: Spain
River: Viar
DMS Co-ordinates: 37˚48'26.54"N, 5˚54'56.13"W
DD Co-ordinates: 37.807373, -5.915592
Facings
Upstream
| Slope | Type |
|---|---|
| 0.30 | RCC against formwork (GEVR/GE-RCC) [stepped face] |
Downstream
| Slope | Type |
|---|---|
| 0.90 | RCC against formwork (GEVR/GE-RCC) [stepped face] |
Spillway
| Slope | Type |
|---|---|
| 0.90 | RCC against formwork (GEVR/GE-RCC) [stepped face] |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 68 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 157 | Low-lime flyash (ASTM Class F) |
