Galesville
Download PDF data sheet

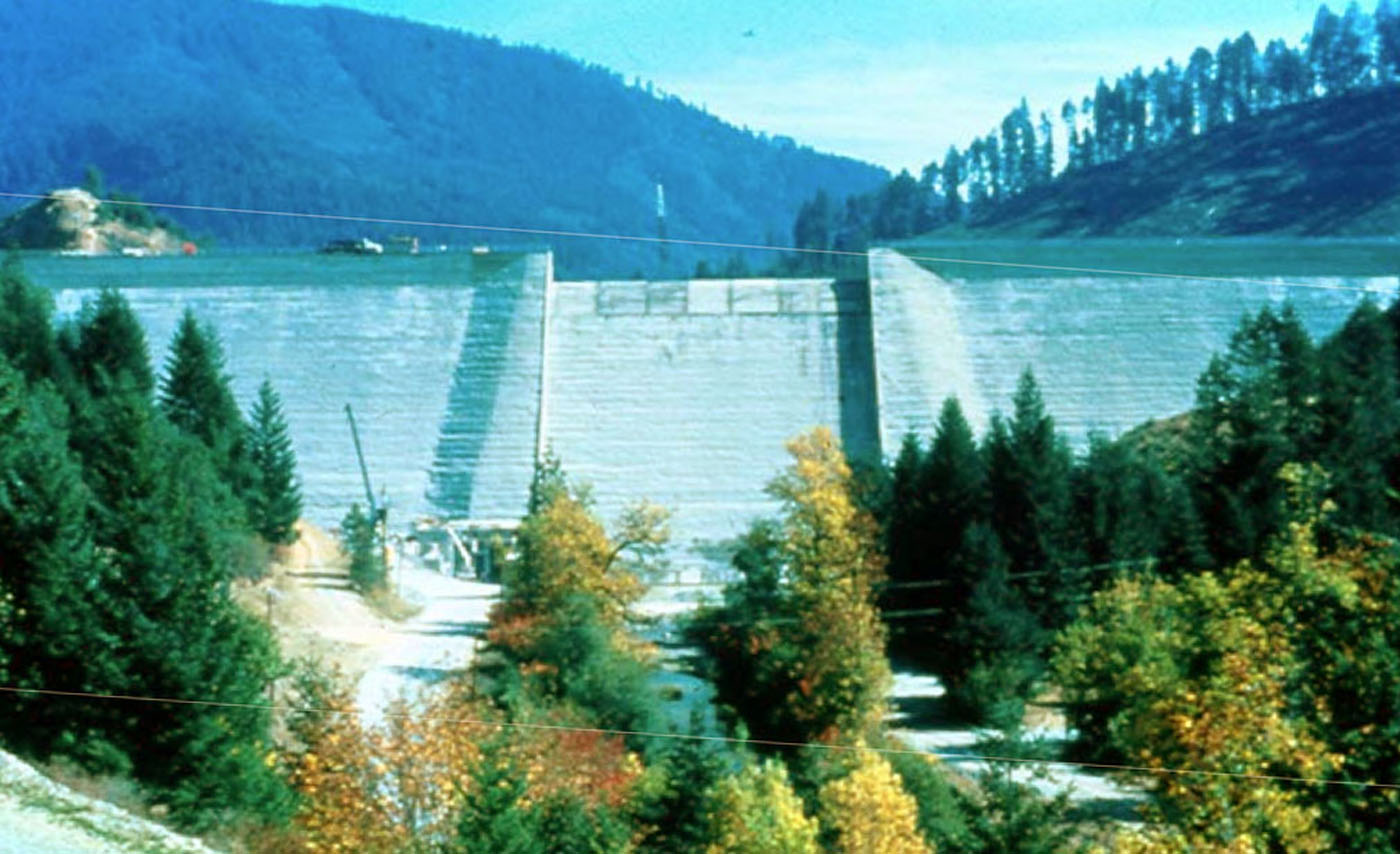

Galesville completed
Particulars
Owner: unknown
Designer: Morrison-Knudson Engineers
Contractor: Venture Construction Co
Statistics
Type: Gravity
Purpose(s): Flood Control / Irrigation / Recreation / Water Supply
Reservoir capacity: 52 m3x106
Height: 50 metres
Length: 290 metres
Volume of RCC: 161 m3x103
Total volume: 171 m3x103
Construction Dates
Start of Project: 07/84 (July 1984)
Start of RCC: 05/85 (May 1985)
End of RCC: 08/85 (August 1985)
End of Project: 10/85 (October 1985)
Country: USA
River: Cow Creek
DMS Co-ordinates: 42˚50'56.62"N, 123˚10'43.27"W
DD Co-ordinates: 42.84906, -123.178688
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | Traditional concrete against formwork |
Downstream
| Slope | Type |
|---|---|
| 0.80 | Unformed face of RCC |
Spillway
| Slope | Type |
|---|---|
| 0.80 | Unformed face of RCC |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 53 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 51 | Low-lime flyash (ASTM Class F) |
