Gökkaya
Download PDF data sheet

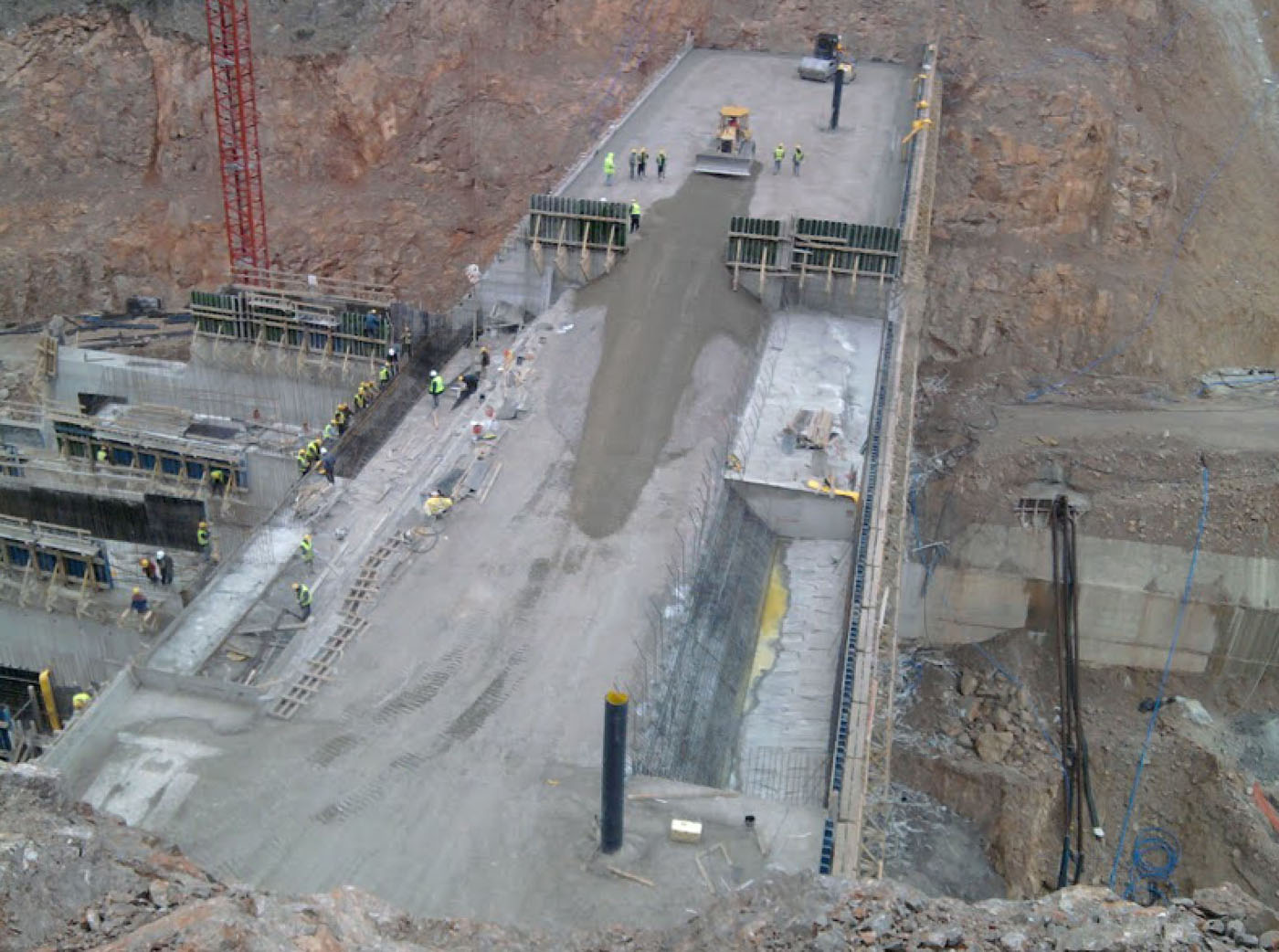

Gökkaya under construction
Particulars
Owner: MEM Energy
Designer: Hidro Dizayn Engineering Consultancy Co. Inc.
Contractor: unknown
Statistics
Type: Gravity
Purpose(s): Hydropower
Reservoir capacity: 18 m3x106
Height: 69 metres
Length: 118 metres
Volume of RCC: 96 m3x103
Total volume: 122 m3x103
Construction Dates
Start of Project: 02/10 (February 2010)
Start of RCC: 07/10 (July 2010)
End of RCC: 05/12 (May 2012)
End of Project: 07/12 (July 2012)
Facings
Upstream
| Slope | Type |
|---|---|
| 0.067 | RCC against formwork |
Downstream
| Slope | Type |
|---|---|
| 0.80 | RCC against formwork |
Spillway
| Slope | Type |
|---|---|
| 0.80 | Reinforced conventional concrete cast before RCC placement |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 55 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 55 | Low-lime flyash (ASTM Class F) |
