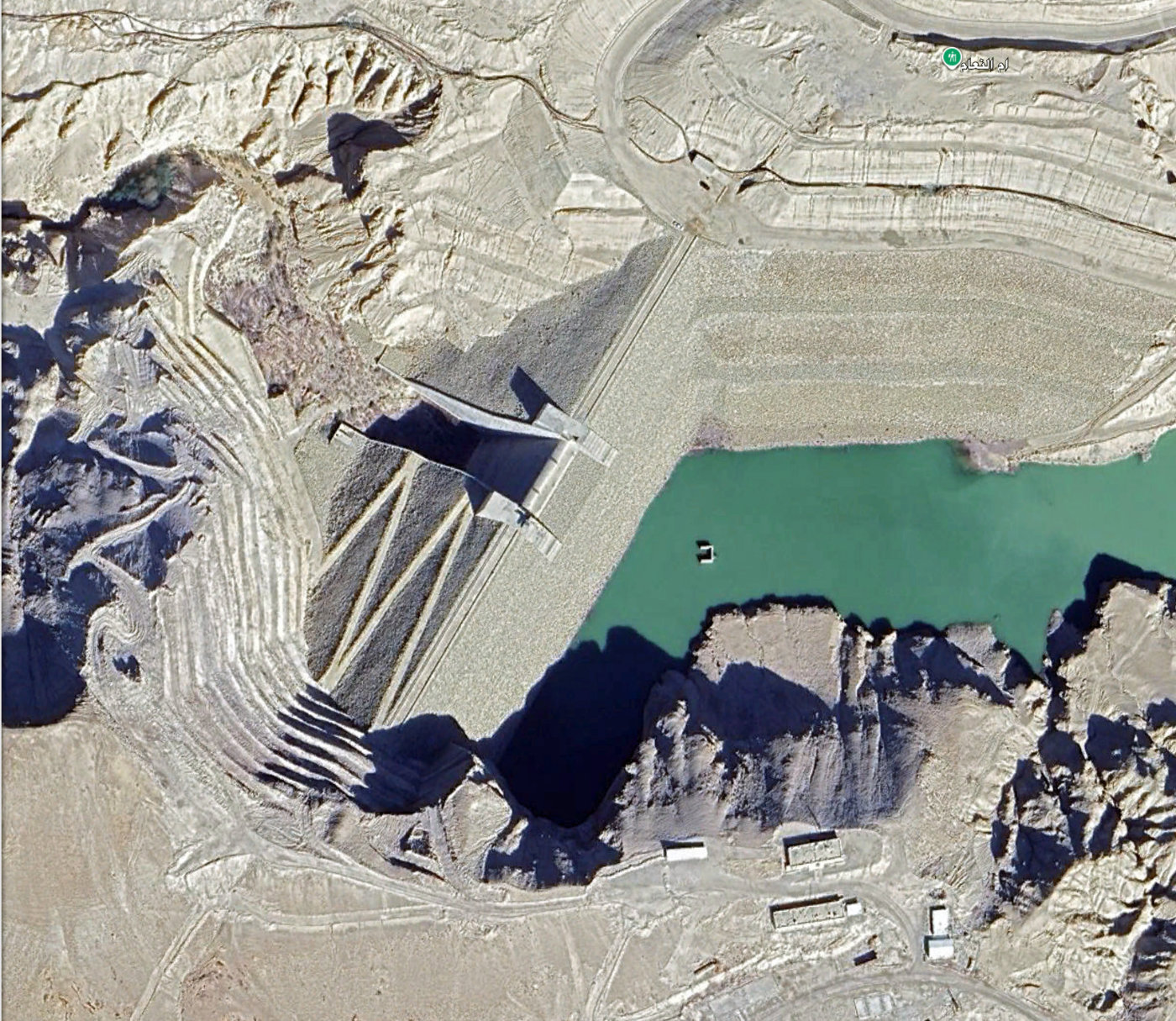

Ibn Hammad
Download PDF data sheet
Ibn Hammad completed
Particulars
Owner: unknown
Designer: Stucky, Bernard and Consolidated Consultants JV
Contractor: Marwan A. Alkurdi & Partners/Enex JV
Statistics
Type: Gravity
Purpose(s): Groundwater Recharge / Water Supply
Reservoir capacity: 4 m3x106
Height: 56 metres
Length: 160 metres
Volume of RCC: 160 m3x103
Total volume: 160 m3x103
Construction Dates
Start of Project: —/15 (— 2015)
Start of RCC: 12/16 (December 2016)
End of RCC: 07/17 (July 2017)
End of Project: —/22 (— 2022)
Country: Jordan
River: Ibn Hammad
DMS Co-ordinates: 31˚17'49.61"N, 35˚33'31.34"E
DD Co-ordinates: 31.297113, 35.558704
Facings
Upstream
| Slope | Type |
|---|---|
| 0.30 | Traditional concrete against formwork |
Downstream
| Slope | Type |
|---|---|
| 0.70 | Traditional concrete against formwork [stepped face] |
Spillway
| Slope | Type |
|---|---|
| 0.70 | Traditional concrete against formwork [stepped face] |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 90 |
| 100 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 0 | No pozzolan used - |
| 0 |
