Rizzanese
Download PDF data sheet

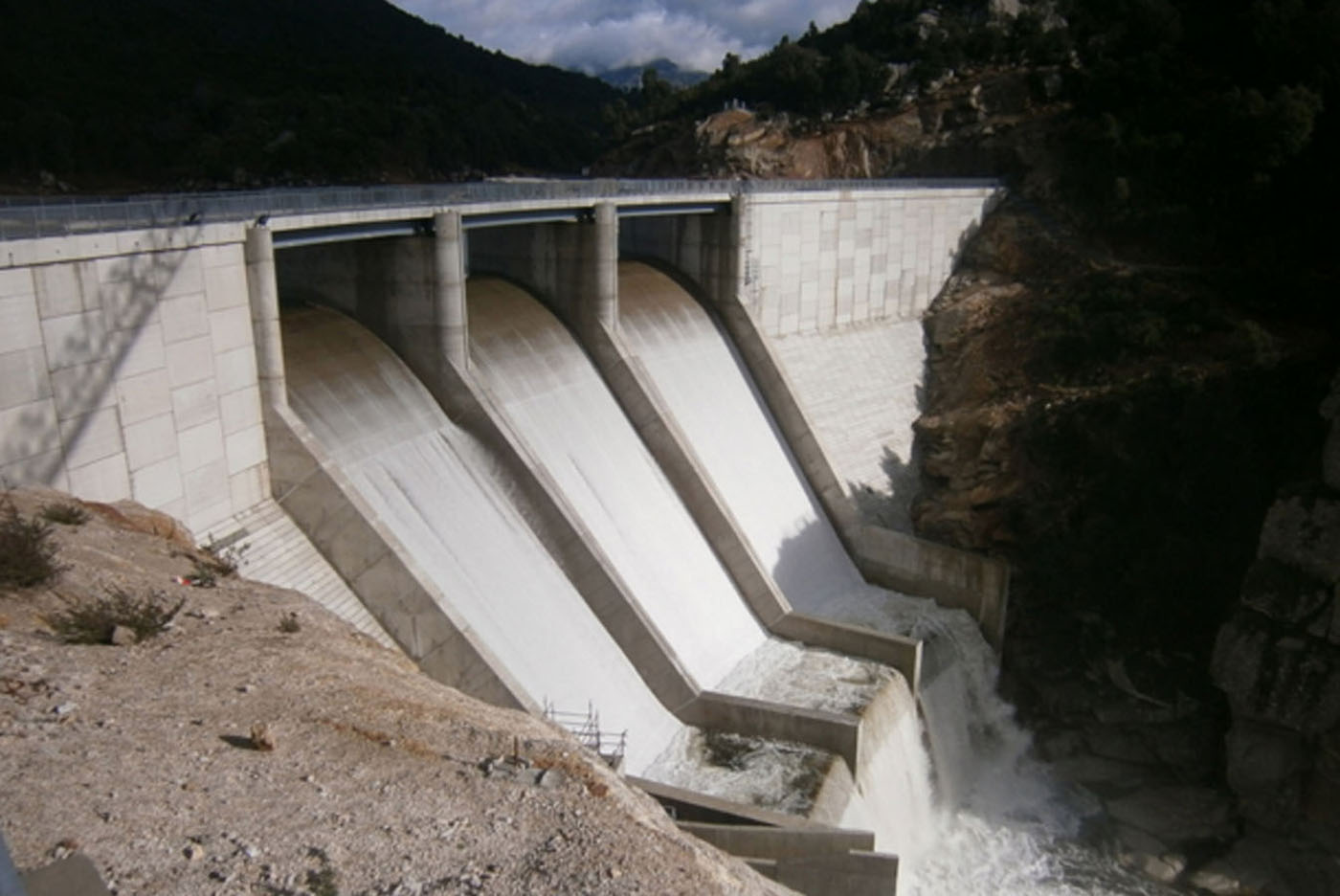

Rizzanese completed
Particulars
Owner: unknown
Designer: Electricité de France
Contractor: Vinci Construction Terrassement-Bec-Corse Travaux JV
Statistics
Type: Gravity
Purpose(s): Hydropower / Irrigation
Reservoir capacity: 1 m3x106
Height: 41 metres
Length: 140 metres
Volume of RCC: 64 m3x103
Total volume: 72 m3x103

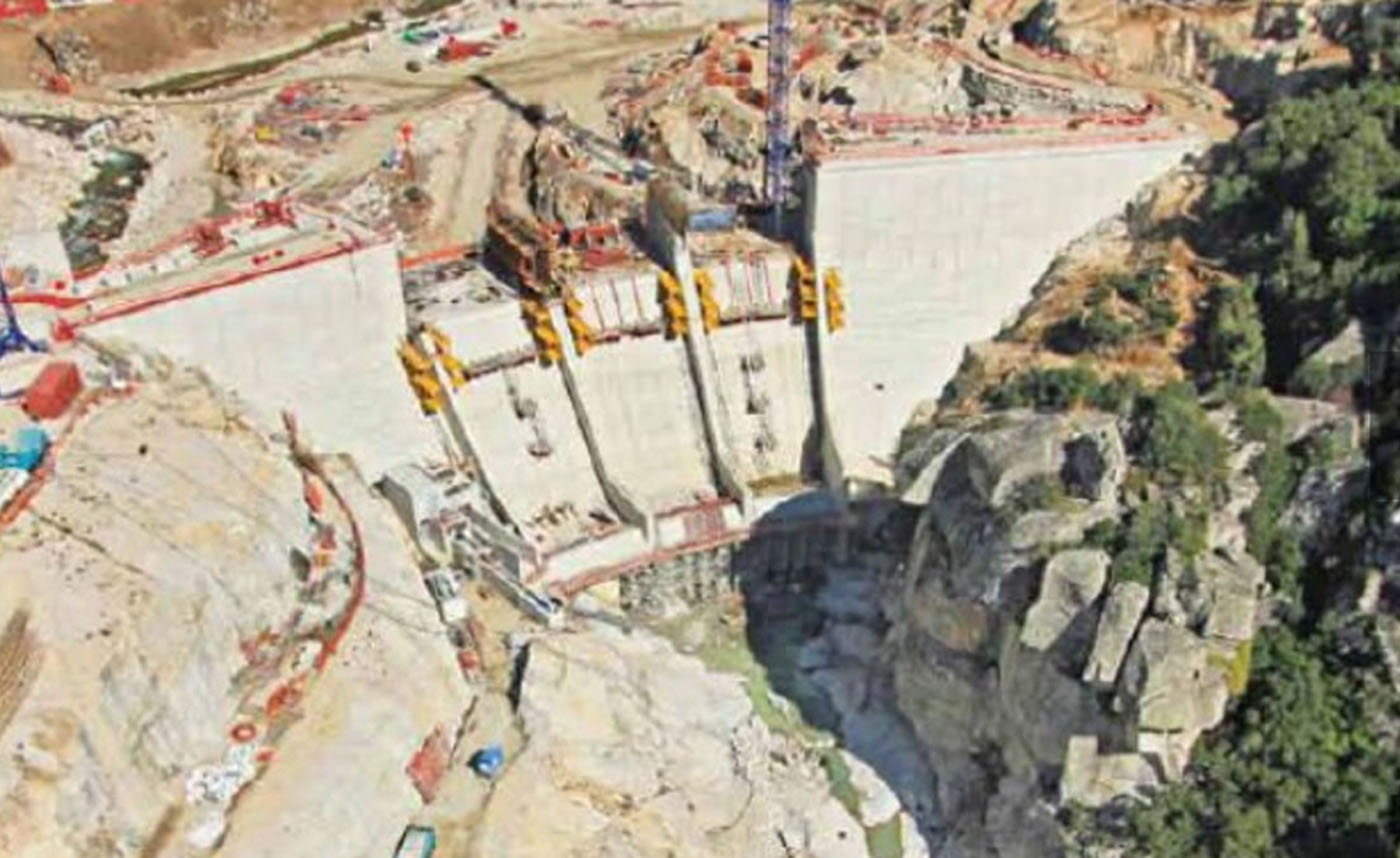

Construction Dates
Start of Project: —/09 (— 2009)
Start of RCC: 04/11 (April 2011)
End of RCC: 02/12 (February 2012)
End of Project: —/12 (— 2012)
Country: France
River: Rizzanese

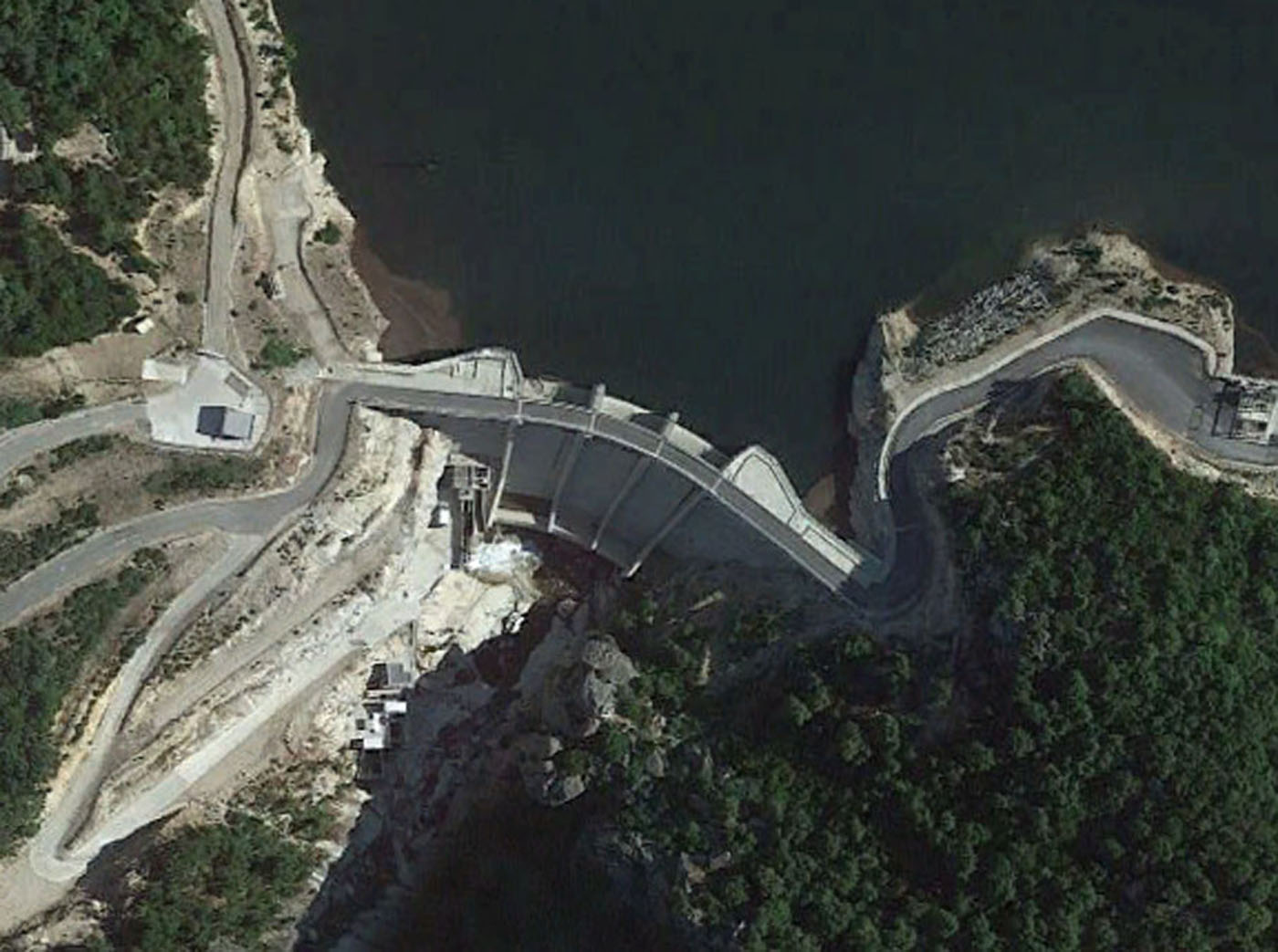

DMS Co-ordinates: 41˚44'5.94"N, 09˚06'52.46"E
DD Co-ordinates: 41.734982, 9.114572
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | Traditional concrete against precast concrete panels with geomembrane |
| 1.00 | RCC against precast concrete blocks |
Downstream
| Slope | Type |
|---|---|
| Vertical | |
| 0.80 |
Spillway
| Slope | Type |
|---|---|
| 0.80 |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 80 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 0 | No pozzolan used - |
