Tie Hack
Download PDF data sheet

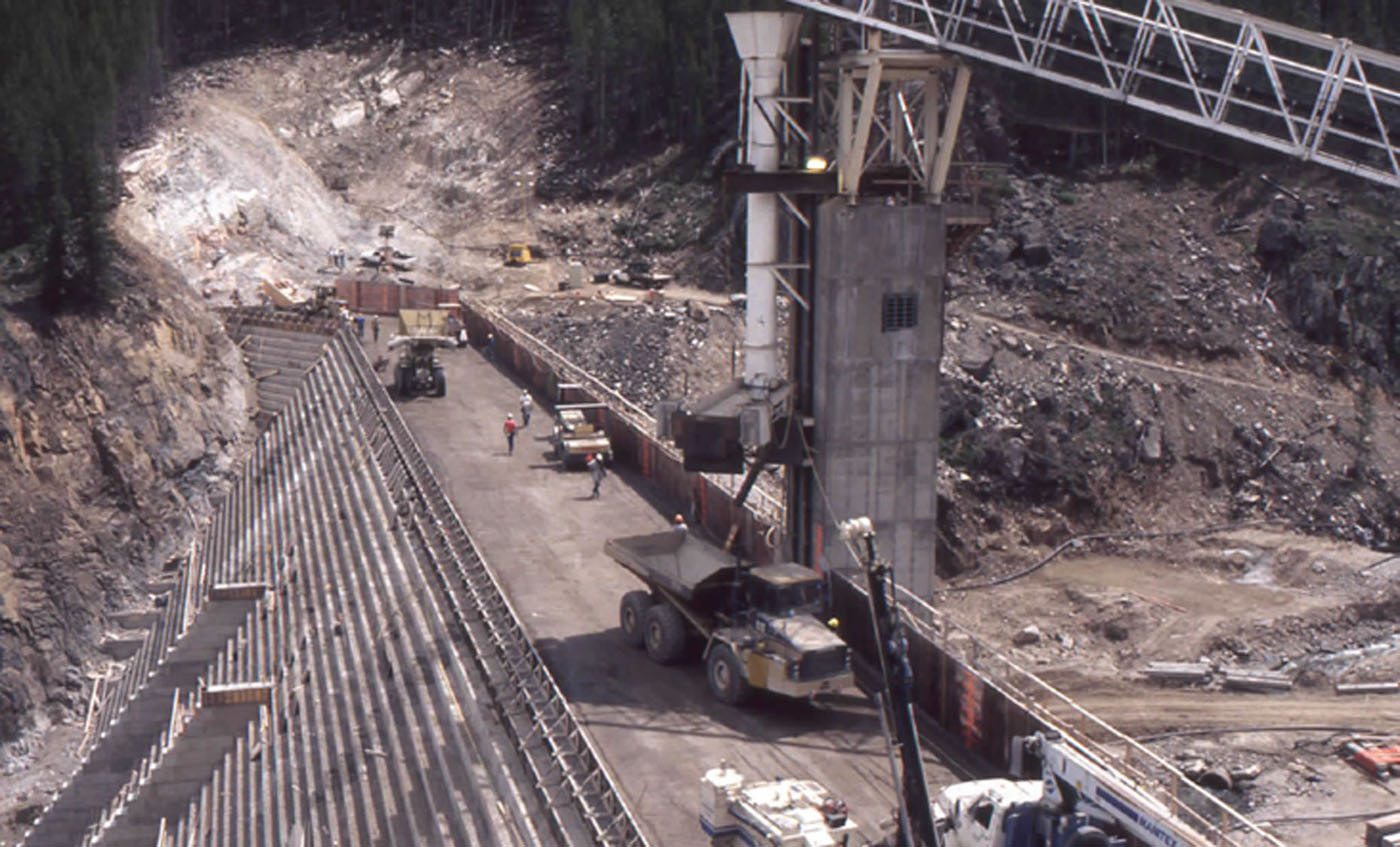

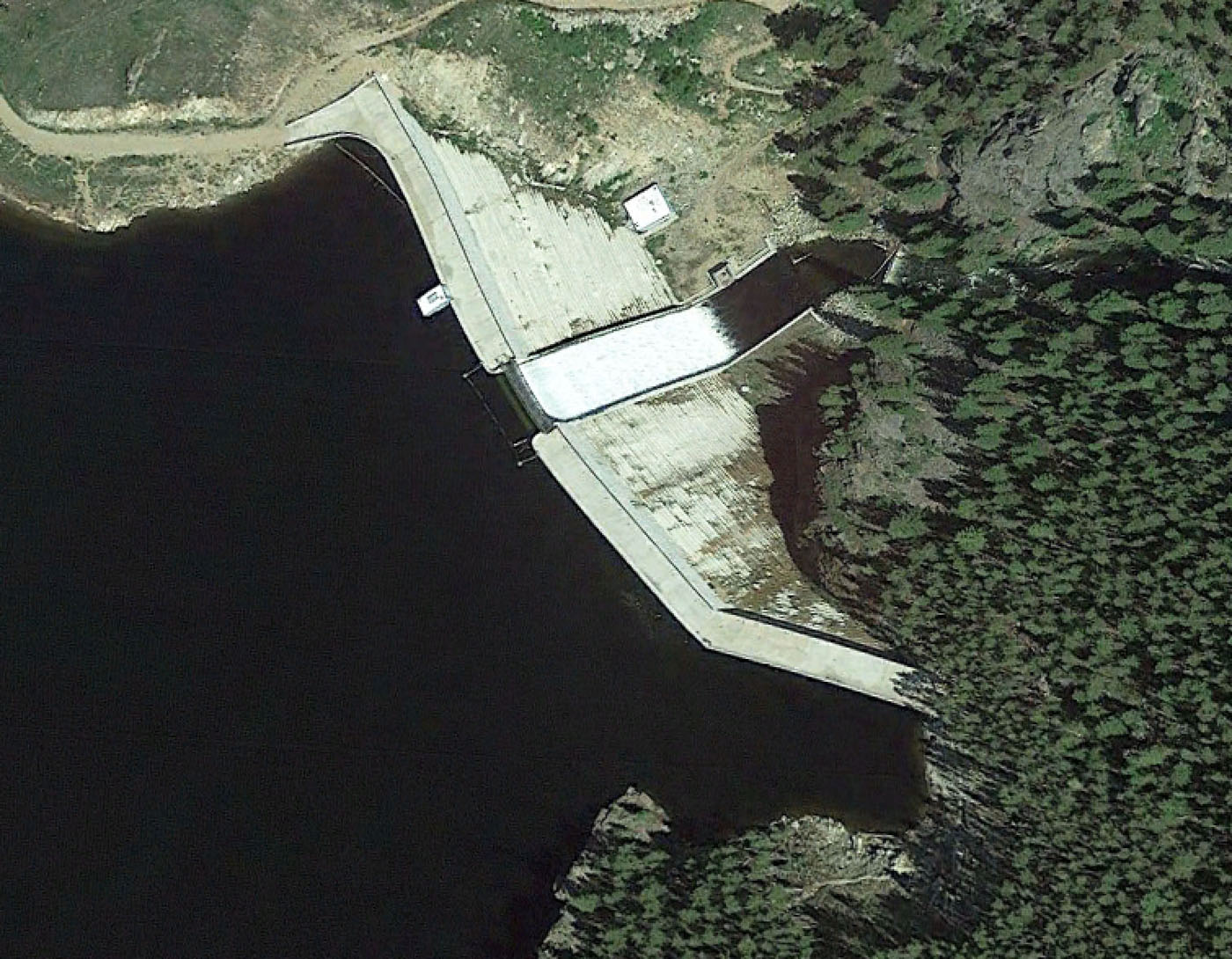

Tie Hack completed
Particulars
Owner: unknown
Designer: States West Water & Woodward Clyde Consultants
Contractor: ASI RCC Inc (Moltz Construction)
Statistics
Type: Gravity
Purpose(s): Water Supply
Reservoir capacity: 3 m3x106
Height: 41 metres
Length: 170 metres
Volume of RCC: 62 m3x103
Total volume: 69 m3x103
Construction Dates
Start of Project: 05/96 (May 1996)
Start of RCC: 10/96 (October 1996)
End of RCC: 08/97 (August 1997)
End of Project: —/97 (— 1997)
Country: USA
River: South Fork Clear Creek
DMS Co-ordinates: 44˚17'8.14"N, 106˚55'17.83"W
DD Co-ordinates: 44.285595, -106.921616
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | Traditional concrete against formwork |
Downstream
| Slope | Type |
|---|---|
| 0.80 | Traditional concrete against formwork [stepped face] |
Spillway
| Slope | Type |
|---|---|
| 0.80 | Traditional concrete against formwork [stepped face] |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 89 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 83 | Low-lime flyash (ASTM Class F) |
