Victoria replacement
Download PDF data sheet

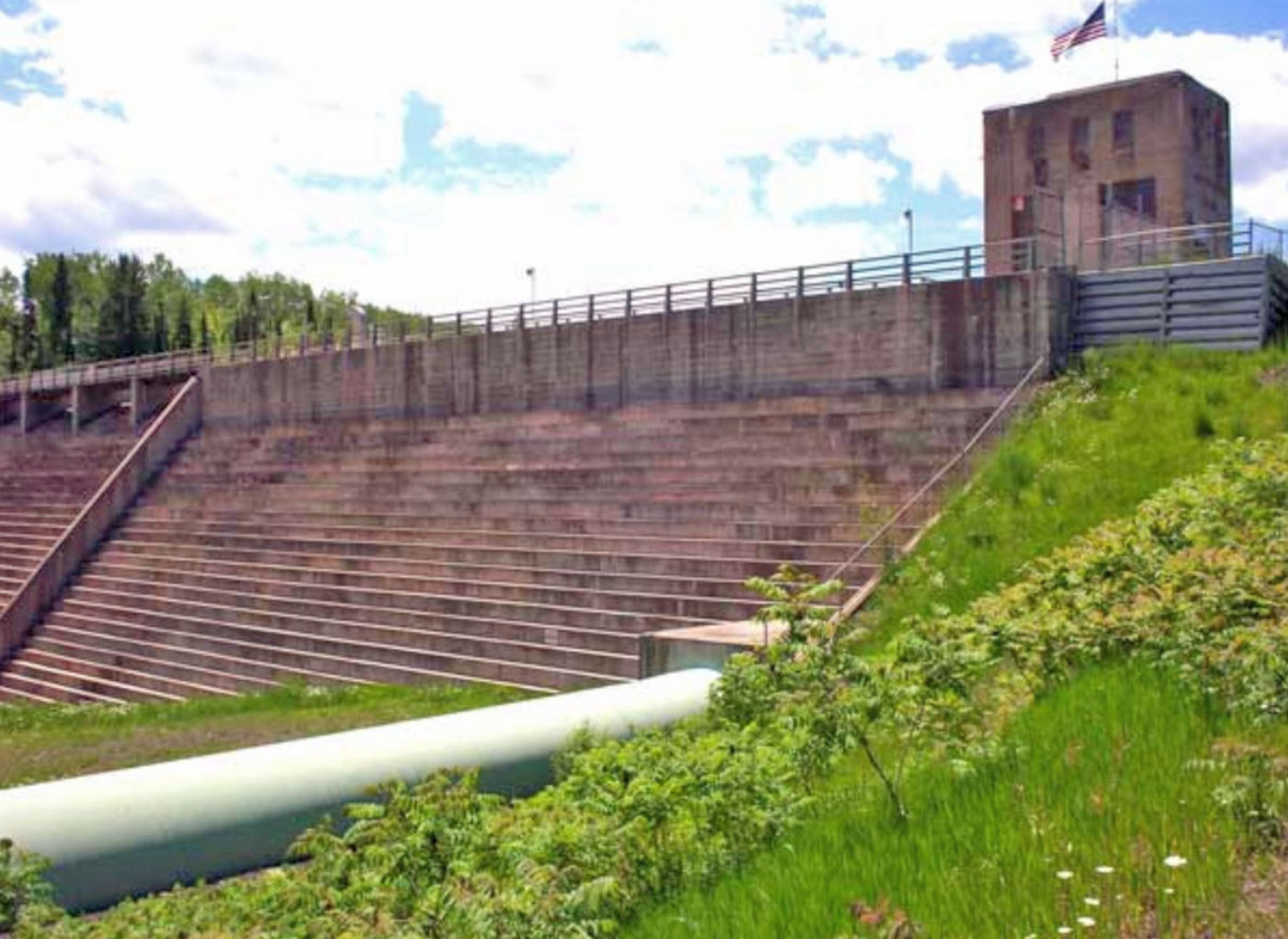

Victoria replacement completed
Particulars
Owner: unknown
Designer: Stone & Webster Engineering Corp., Colorado
Contractor: Bacco Construction Company
Statistics
Type: Gravity
Purpose(s): Hydropower
Reservoir capacity: 13 m3x106
Height: 37 metres
Length: 100 metres
Volume of RCC: 36 m3x103
Total volume: 40 m3x103
Construction Dates
Start of Project: 04/91 (April 1991)
Start of RCC: 08/91 (August 1991)
End of RCC: 10/91 (October 1991)
End of Project: 06/92 (June 1992)
Country: USA
River: West Branch

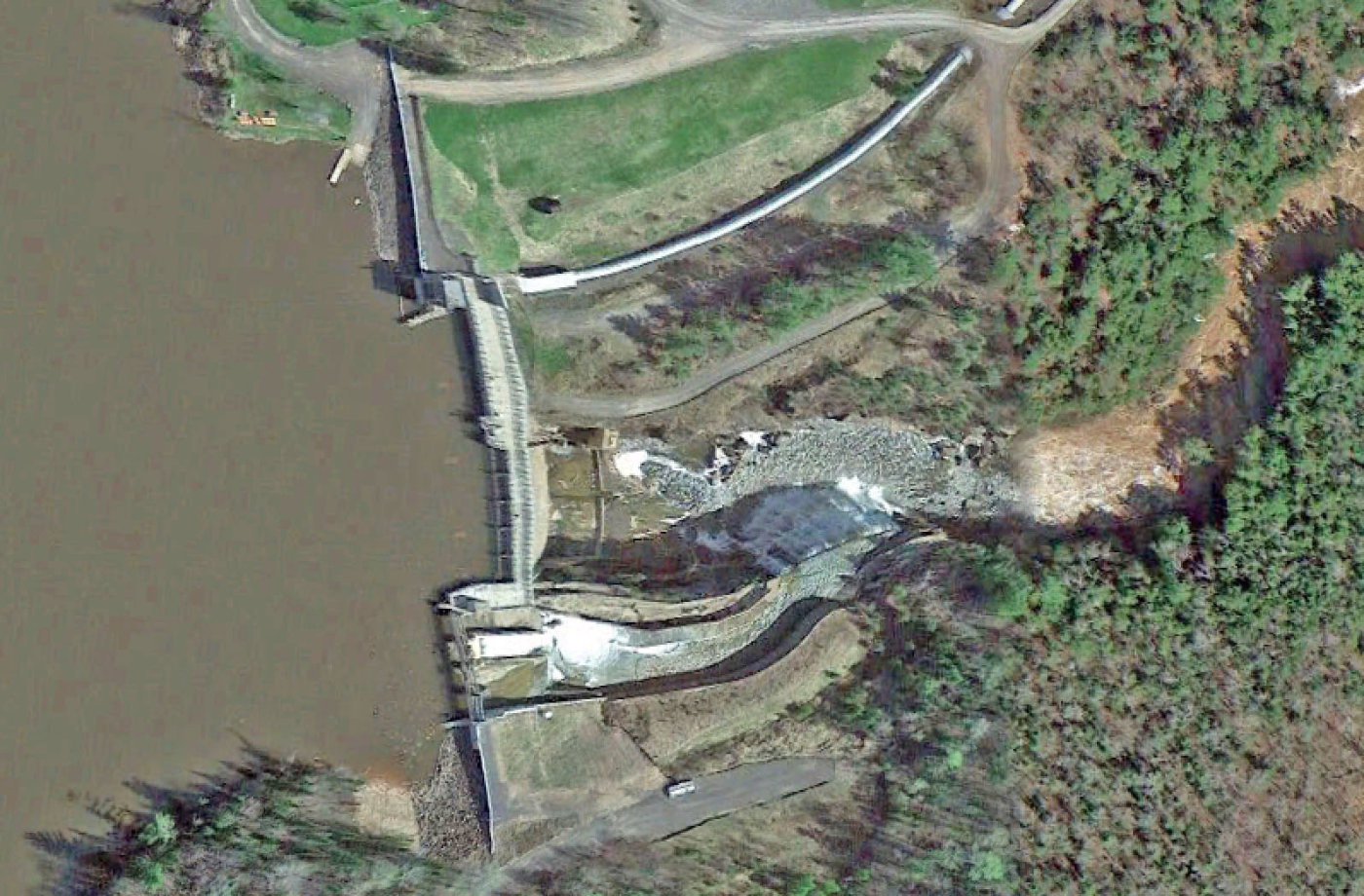

DMS Co-ordinates: 46˚41'12.99"N, 89˚13'46.45"W
DD Co-ordinates: 46.686943, -89.229568
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | Reinforced conventional concrete cast after RCC placement |
Downstream
| Slope | Type |
|---|---|
| 0.80 | RCC against formwork [stepped face] |
Spillway
| Slope | Type |
|---|---|
| 0.80 | RCC against formwork [stepped face] |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 67 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 67 | High-lime flyash (ASTM Class C) |
