Arvoredo
Download PDF data sheet

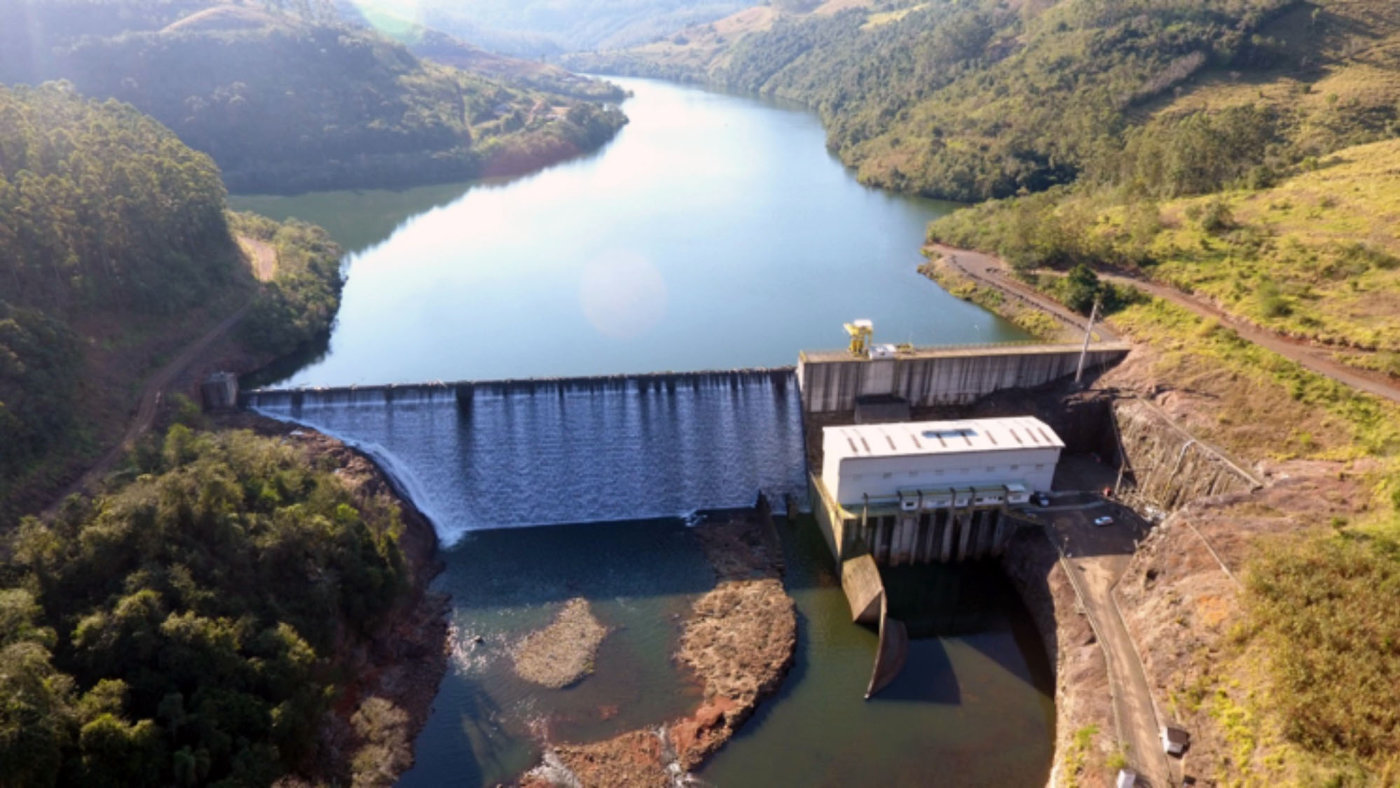

Arvoredo completed
Particulars
Owner: unknown
Designer: MEK Engenharia, CESBE and SBB
Contractor: unknown
Statistics
Type: Gravity
Purpose(s): Hydropower
Reservoir capacity: 12 m3x106
Height: 39 metres
Length: 250 metres
Volume of RCC: 53 m3x103
Total volume: 81 m3x103
Construction Dates
Start of Project: —/08 (— 2008)
Start of RCC: —/09 (— 2009)
End of RCC: —/09 (— 2009)
End of Project: 04/10 (April 2010)
Country: Brazil
River: Irani

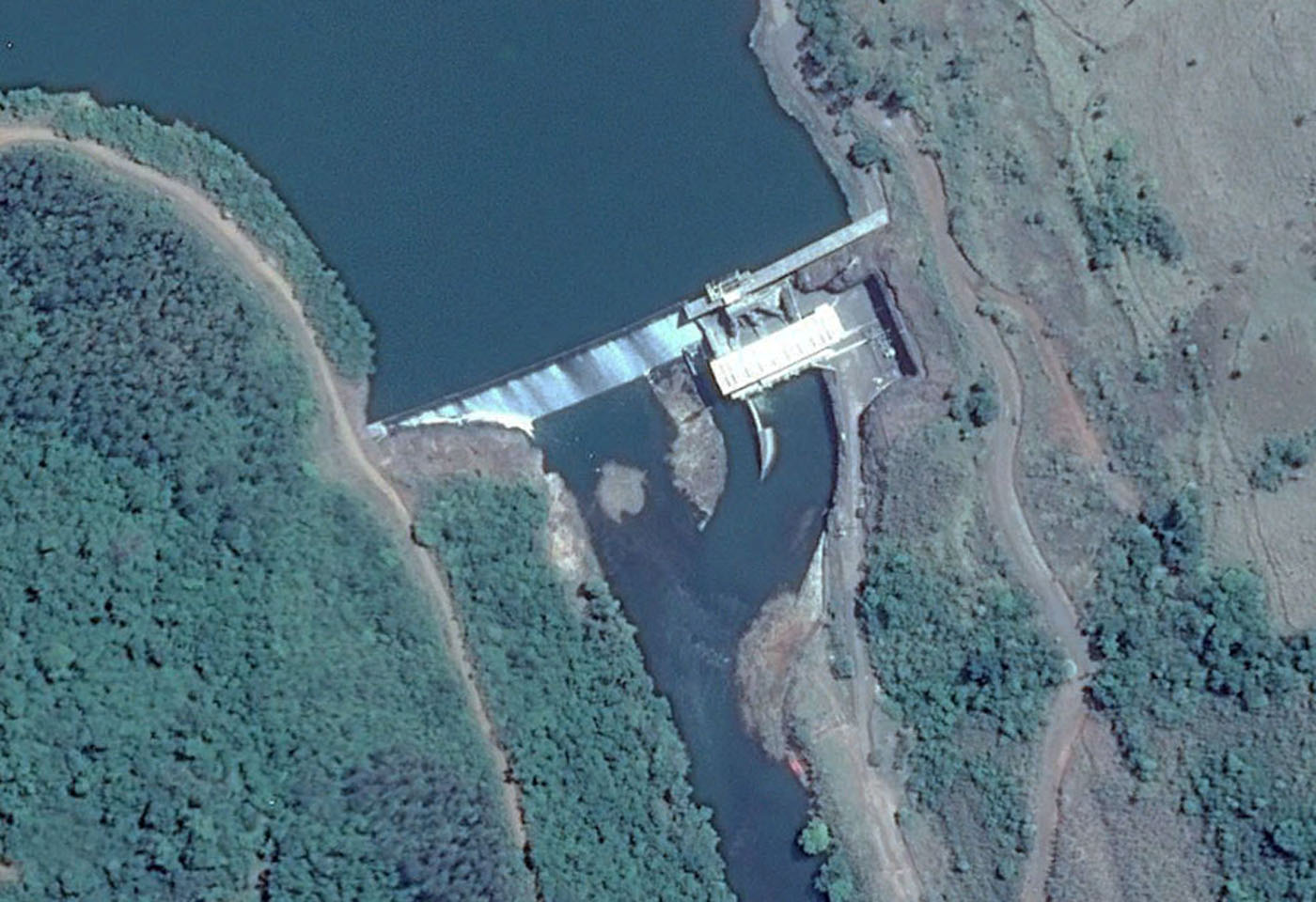

DMS Co-ordinates: 27˚03'31.84"S, 52˚28'15.62"W
DD Co-ordinates: -27.058844, -52.471004
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical |
Downstream
| Slope | Type |
|---|---|
| 0.75 |
Spillway
| Slope | Type |
|---|---|
| 0.75 |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
Cementitious material
| Cement (kg/m3) |
|---|
| 80 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 20 | Natural pozzolan (ASTM Class N) |
