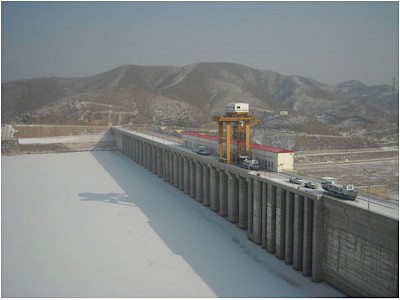

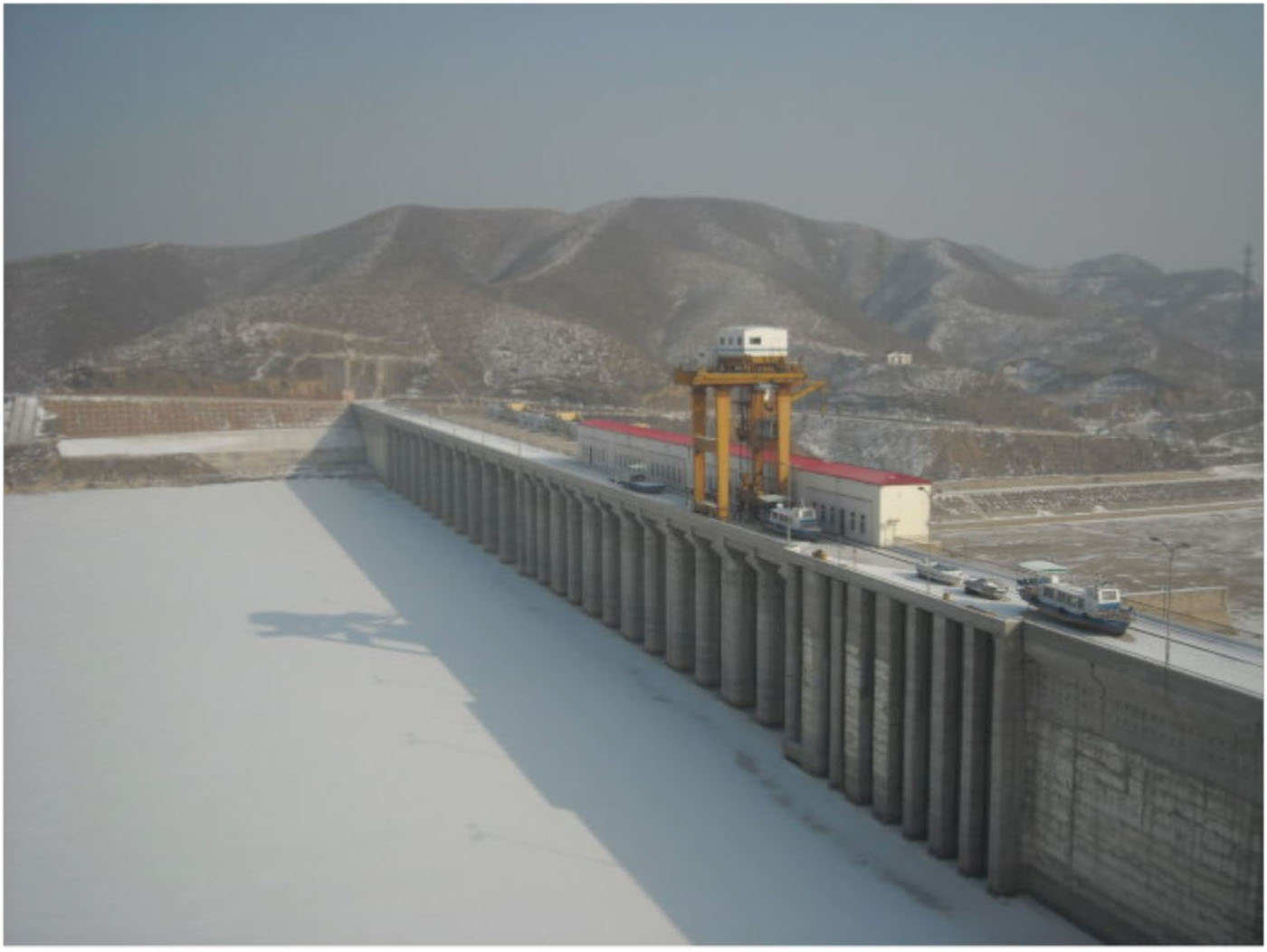

Baishi
Download PDF data sheet
Baishi completed
Particulars
Owner: unknown
Designer: Institute of Design & Investigation of Water Resources in Shenyang, Liaoning Province
Contractor: Department of Water Resources and Hydropower, Liaoning Province
Statistics
Type: Gravity
Purpose(s): Flood Control / Hydropower / Irrigation / Water Supply
Reservoir capacity: 1645 m3x106
Height: 49 metres
Length: 513 metres
Volume of RCC: 111 m3x103
Total volume: 603 m3x103
Construction Dates
Start of Project: 09/96 (September 1996)
Start of RCC: 04/97 (April 1997)
End of RCC: 09/99 (September 1999)
End of Project: 12/00 (December 2000)
Country: China
River: Dalinghe
DMS Co-ordinates: 41˚40'45.08"N, 121˚0'20.95"E
DD Co-ordinates: 41.679188, 121.005821
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | Traditional concrete against formwork |
| 0.10 | Traditional concrete against formwork |
Downstream
| Slope | Type |
|---|---|
| 0.70 | Traditional concrete against formwork |
Spillway
| Slope | Type |
|---|---|
| 0.76 | Traditional concrete against formwork |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 72 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 58 | Low-lime flyash (ASTM Class F) |
