Castilblanco de los Arroyos
Download PDF data sheet

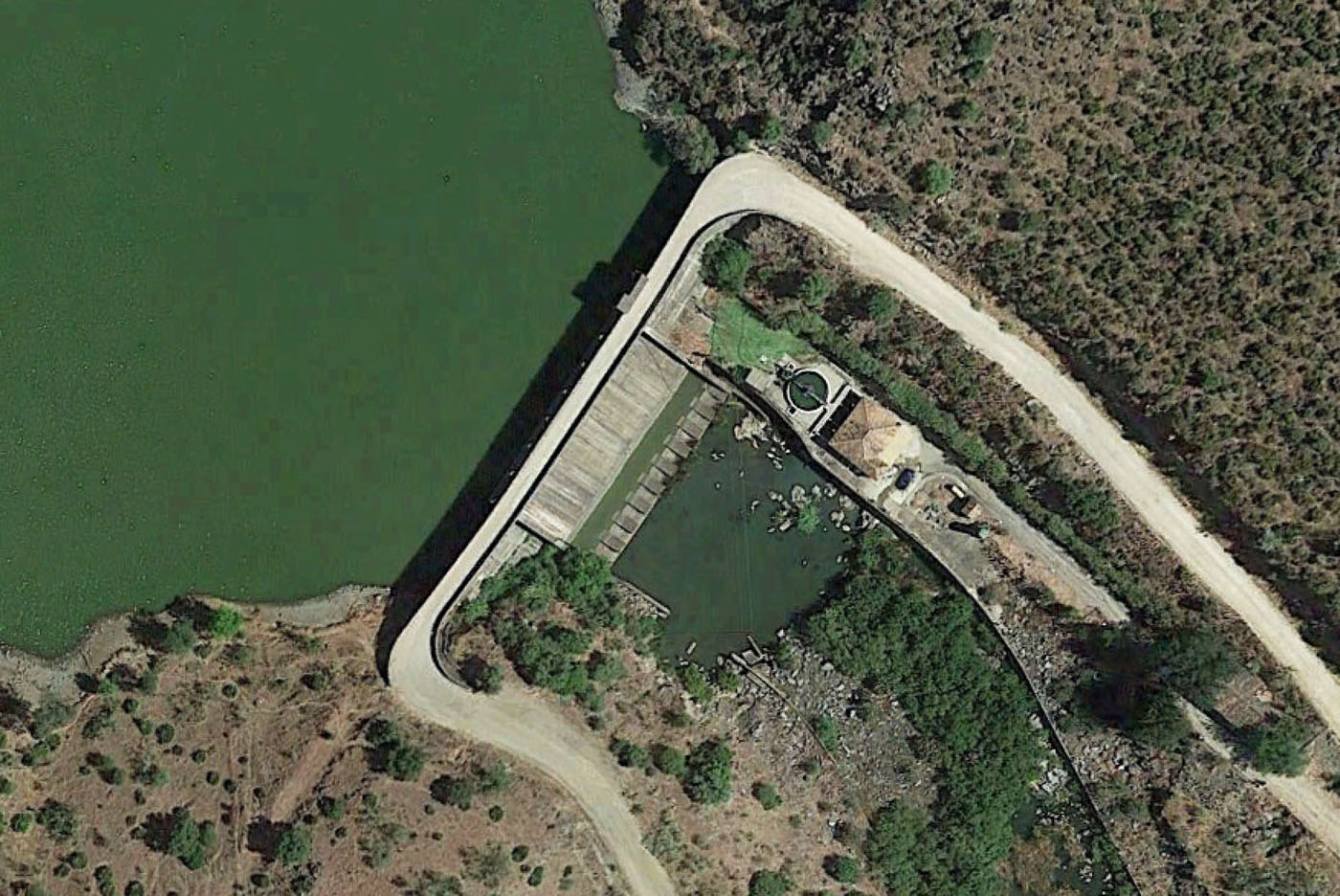

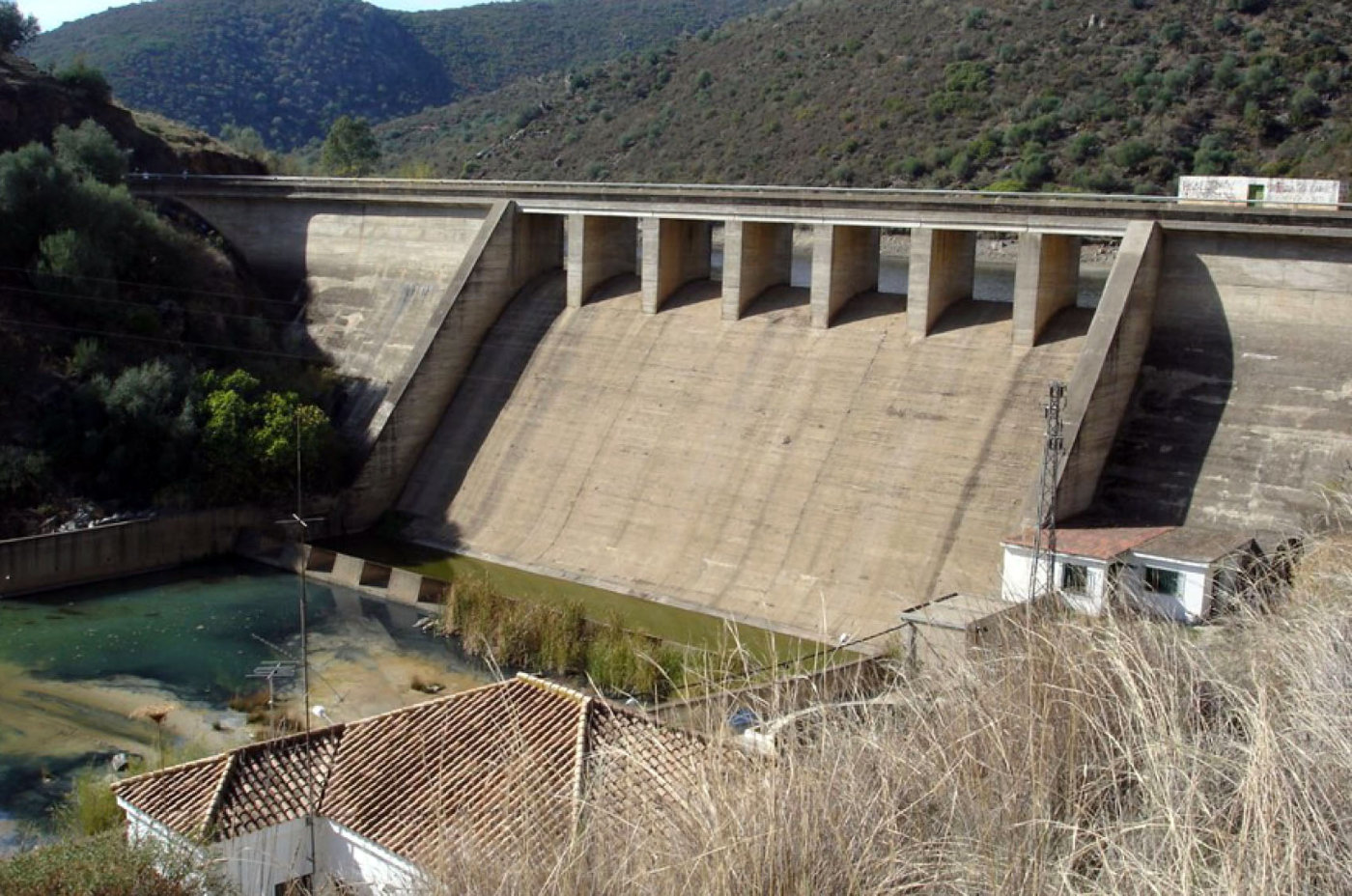

Castilblanco de los Arroyos completed
Particulars
Owner: unknown
Designer: Agua y Estructuras S.A. (AYESA)
Contractor: OCISA (Obras y Construcciones Industriales S.A.) - now ACS Dragados
Statistics
Type: Gravity
Purpose(s): Water Supply
Reservoir capacity: 1 m3x106
Height: 25 metres
Length: 124 metres
Volume of RCC: 14 m3x103
Total volume: 20 m3x103
Construction Dates
Start of Project: 07/84 (July 1984)
Start of RCC: 05/85 (May 1985)
End of RCC: 10/85 (October 1985)
End of Project: 12/85 (December 1985)
Country: Spain
River: Cala
DMS Co-ordinates: 37˚38'58.15"N, 6˚0'18.12"W
DD Co-ordinates: 37.649487, -6.005033
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | Traditional concrete against formwork |
Downstream
| Slope | Type |
|---|---|
| Vertical | Traditional concrete against formwork |
| 0.75 | Traditional concrete against formwork |
Spillway
| Slope | Type |
|---|---|
| 0.75 | Traditional concrete against formwork |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 450 | 450 |
Cementitious material
| Cement (kg/m3) |
|---|
| 72 |
| 61 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 116 | Low-lime flyash (ASTM Class F) |
| 120 |
