Cerro del Águila
Download PDF data sheet

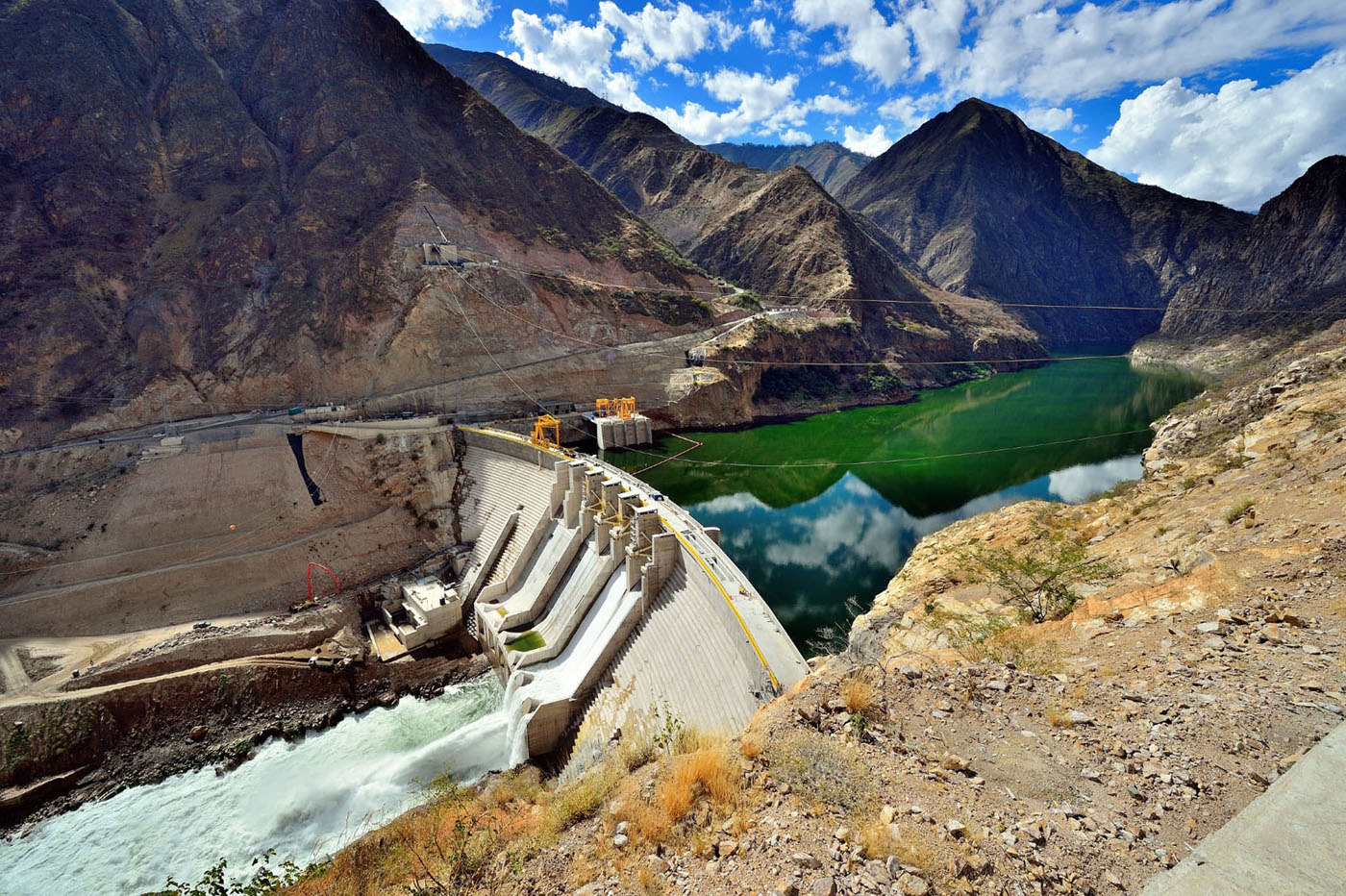

Cerro del Águila completed
Particulars
Owner: unknown
Designer: Lombadi Engineering Ltd.
Contractor: Astaldi Spa and Gym-Grana y Montero S.A. JV
Statistics
Type: Gravity
Purpose(s): Hydropower
Reservoir capacity: 37 m3x106
Height: 89 metres
Length: 270 metres
Volume of RCC: 250 m3x103
Total volume: 450 m3x103
Construction Dates
Start of Project: 11/12 (November 2012)
Start of RCC: 08/14 (August 2014)
End of RCC: 06/15 (June 2015)
End of Project: —/16 (— 2016)
Country: Peru
River: Mantaro
DMS Co-ordinates: 12˚17'29"S, 74˚41'04"W
DD Co-ordinates: -12.291389, -74.684441
Facings
Upstream
| Slope | Type |
|---|---|
| 0.10 | Traditional concrete against formwork |
Downstream
| Slope | Type |
|---|---|
| 0.75 | Traditional concrete against formwork [stepped face] |
Spillway
| Slope | Type |
|---|---|
| 0.75 | Reinforced conventional concrete cast after RCC placement |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 600 |
Cementitious material
| Cement (kg/m3) |
|---|
| 115 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 23 | |
