Craigbourne
Download PDF data sheet

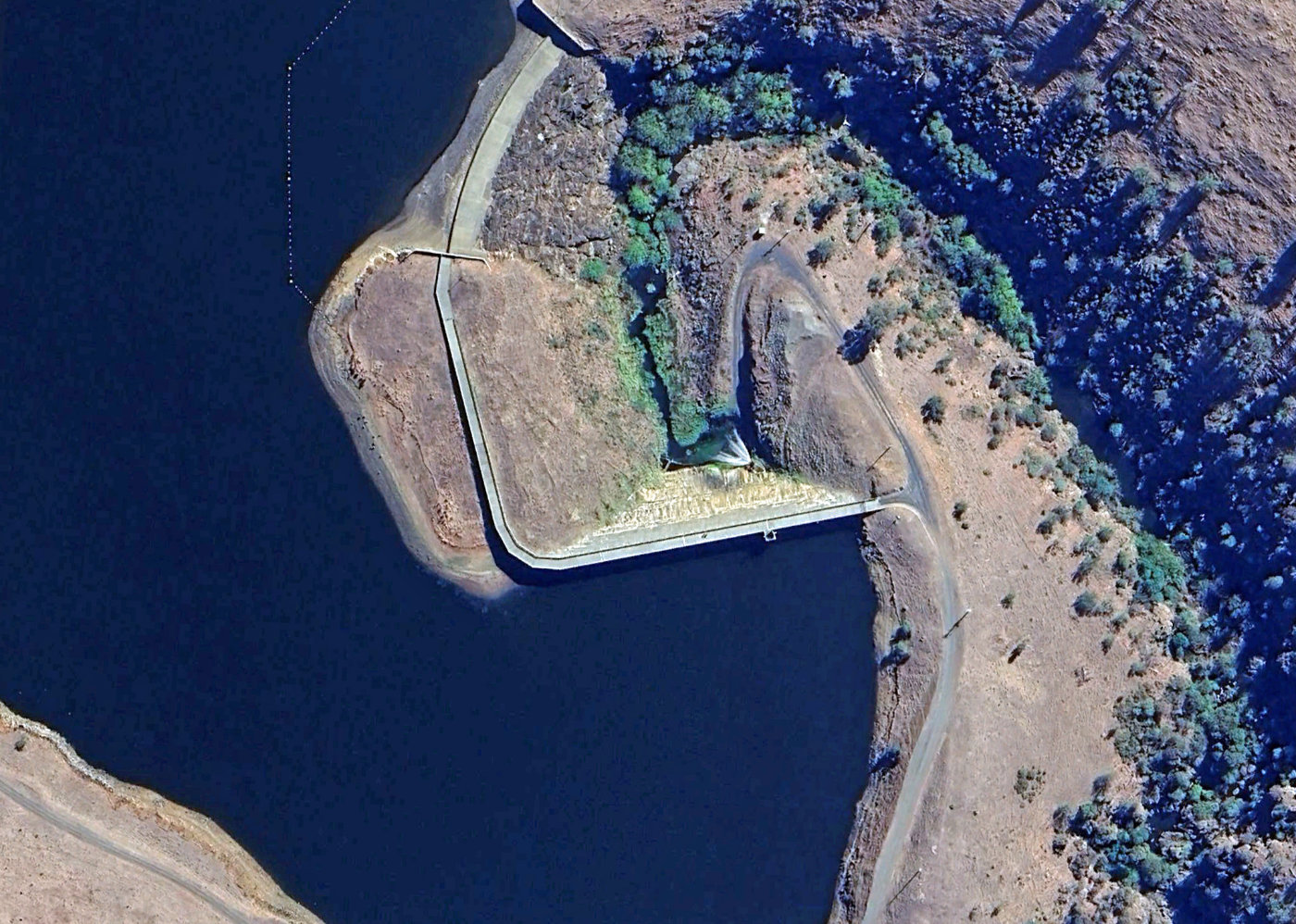

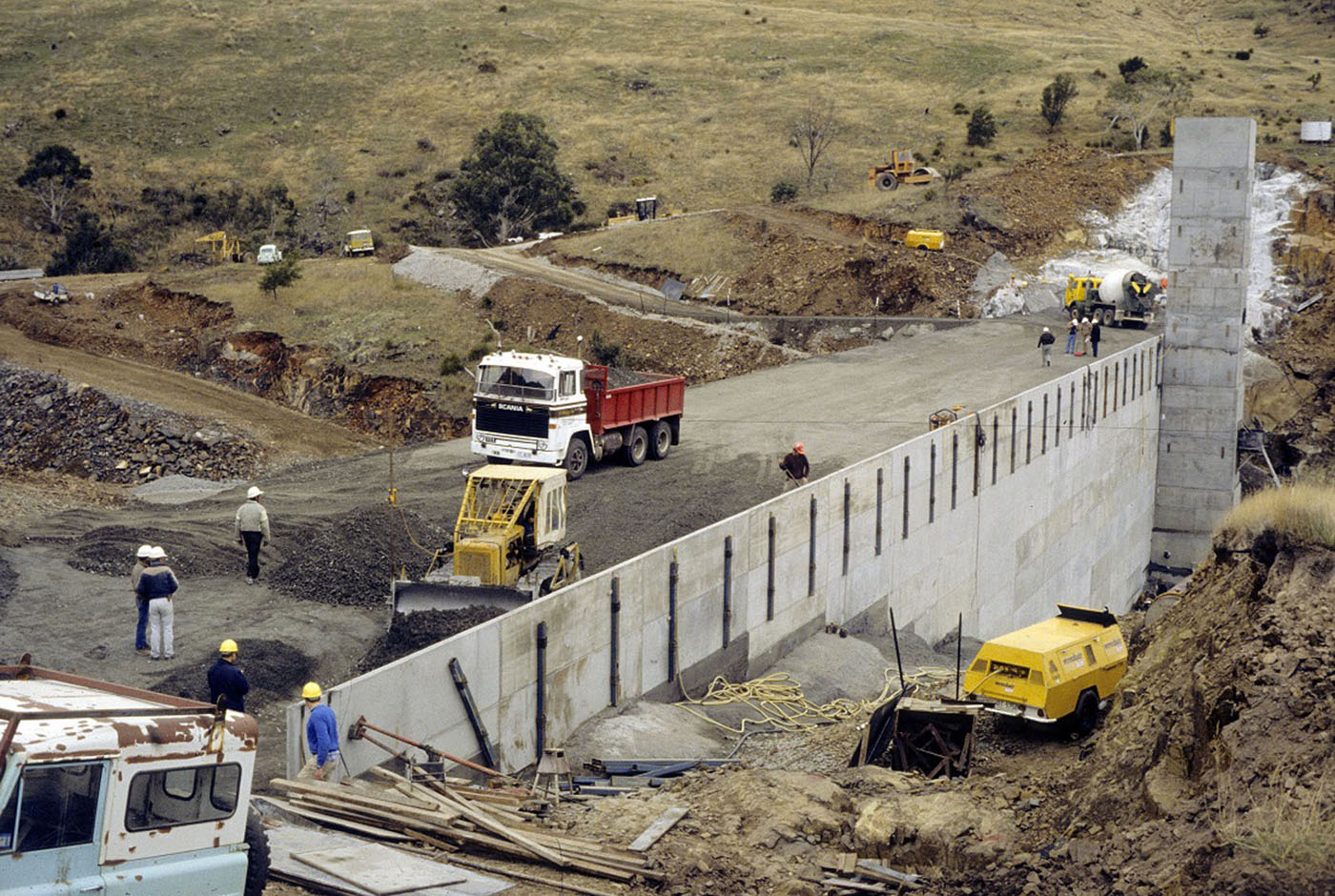

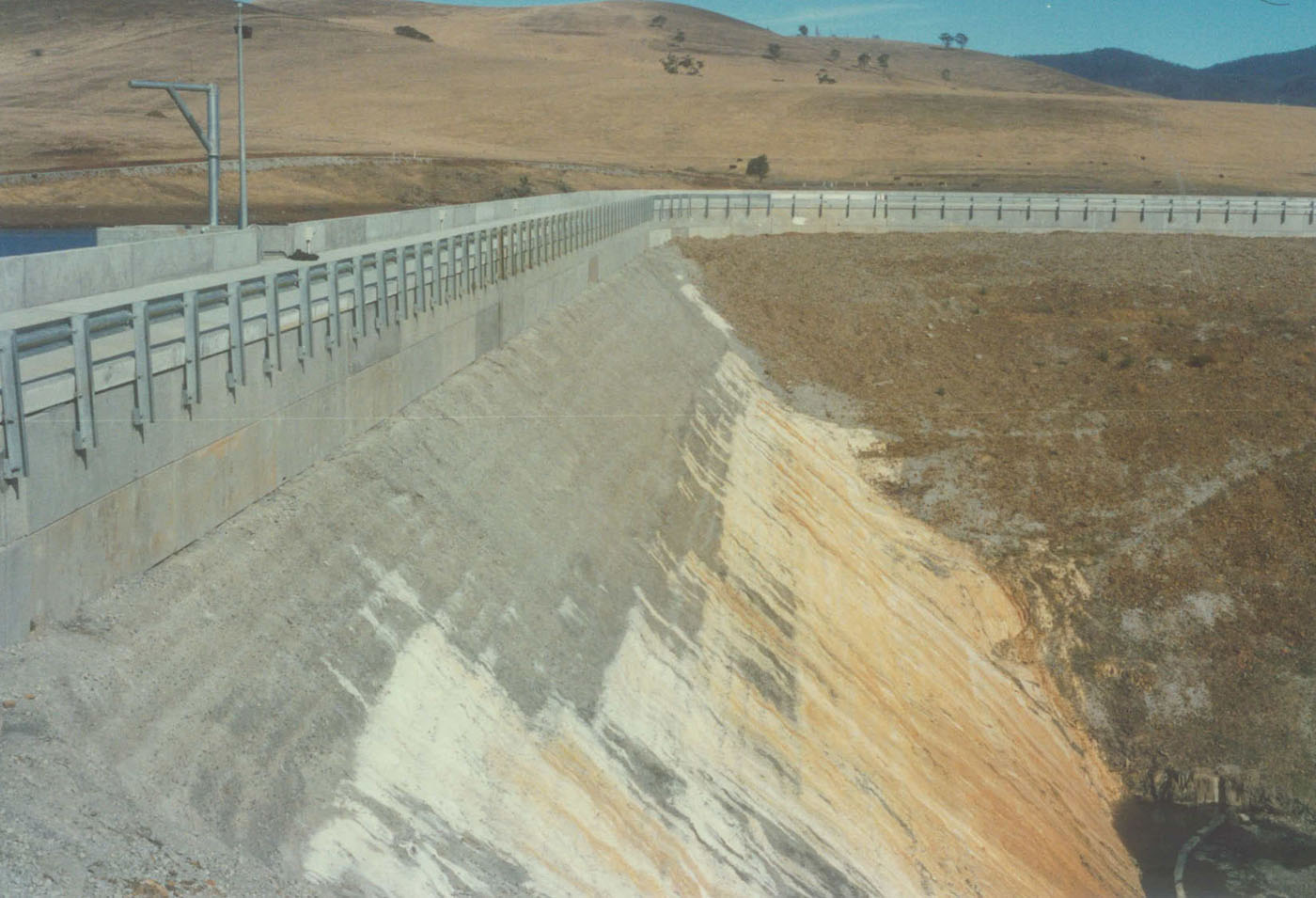

Craigbourne completed
Particulars
Owner: unknown
Designer: Gutteridge Haskins & Davey
Contractor: Roche Bros Pty Ltd
Statistics
Type: Gravity
Purpose(s): Irrigation / Water Supply
Reservoir capacity: 13 m3x106
Height: 25 metres
Length: 247 metres
Volume of RCC: 22 m3x103
Total volume: 24 m3x103
Construction Dates
Start of Project: 01/86 (January 1986)
Start of RCC: 04/86 (April 1986)
End of RCC: 06/86 (June 1986)
End of Project: 08/86 (August 1986)
Country: Australia
River: Coal
DMS Co-ordinates: 42˚33'23.60"S, 147˚24'16.96"E
DD Co-ordinates: -42.556557, 147.404709
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | RCC against precast concrete panels |
Downstream
| Slope | Type |
|---|---|
| 1.00 | Unformed face of RCC |
Spillway
| Slope | Type |
|---|---|
| separate |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 70 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 60 | Low-lime flyash (ASTM Class F) |
