Fundão
Download PDF data sheet

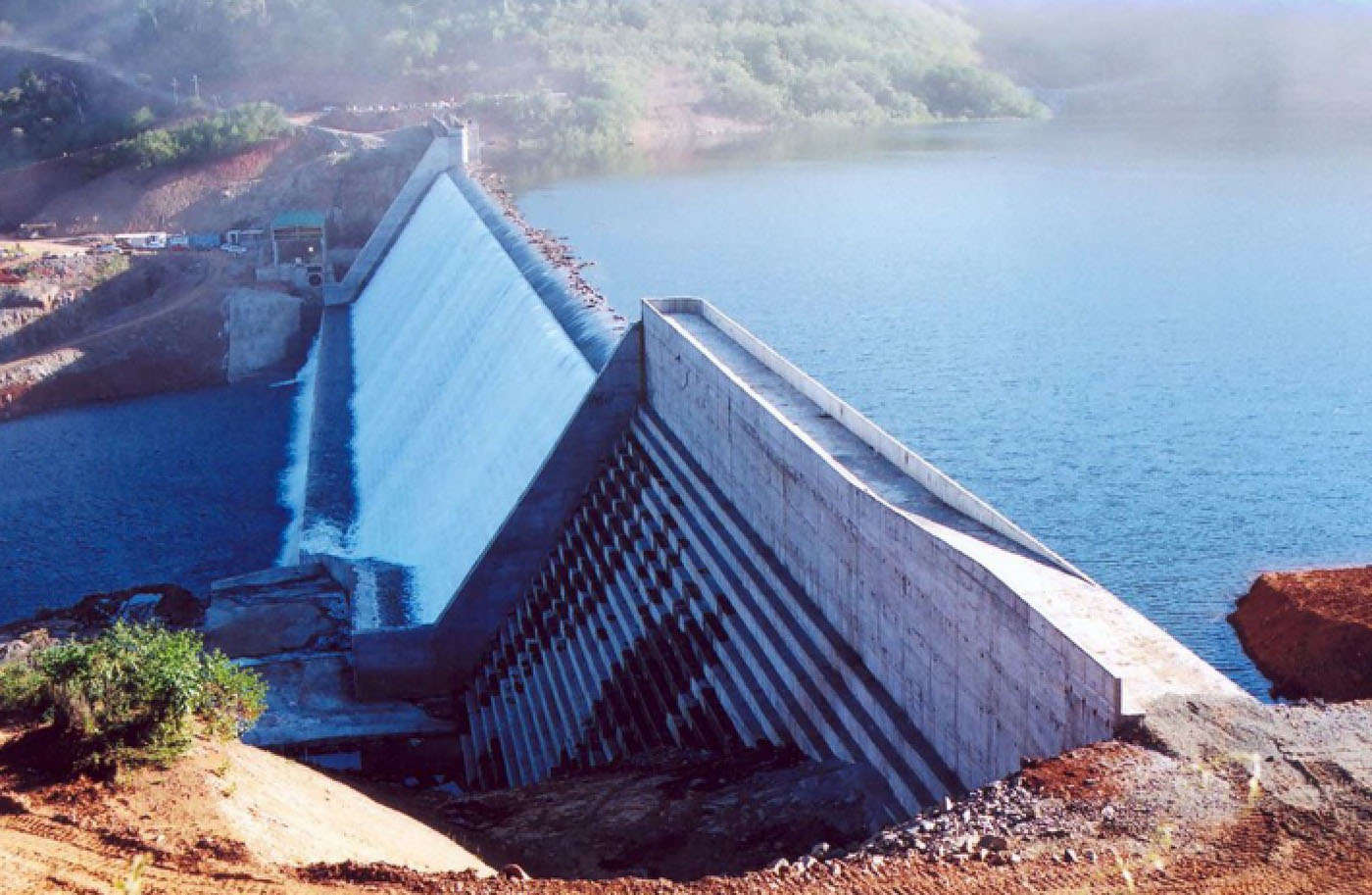

Fundão completed
Particulars
Owner: unknown
Designer: unknown
Contractor: Construtora Triunfo Ltda.
Statistics
Type: Gravity
Purpose(s): Hydropower
Reservoir capacity: 34 m3x106
Height: 43 metres
Length: 445 metres
Volume of RCC: 200 m3x103
Total volume: 220 m3x103
Construction Dates
Start of Project: —/04 (— 2004)
Start of RCC: —/05 (— 2005)
End of RCC: —/06 (— 2006)
End of Project: —/07 (— 2007)
Country: Brazil
River: Jordao

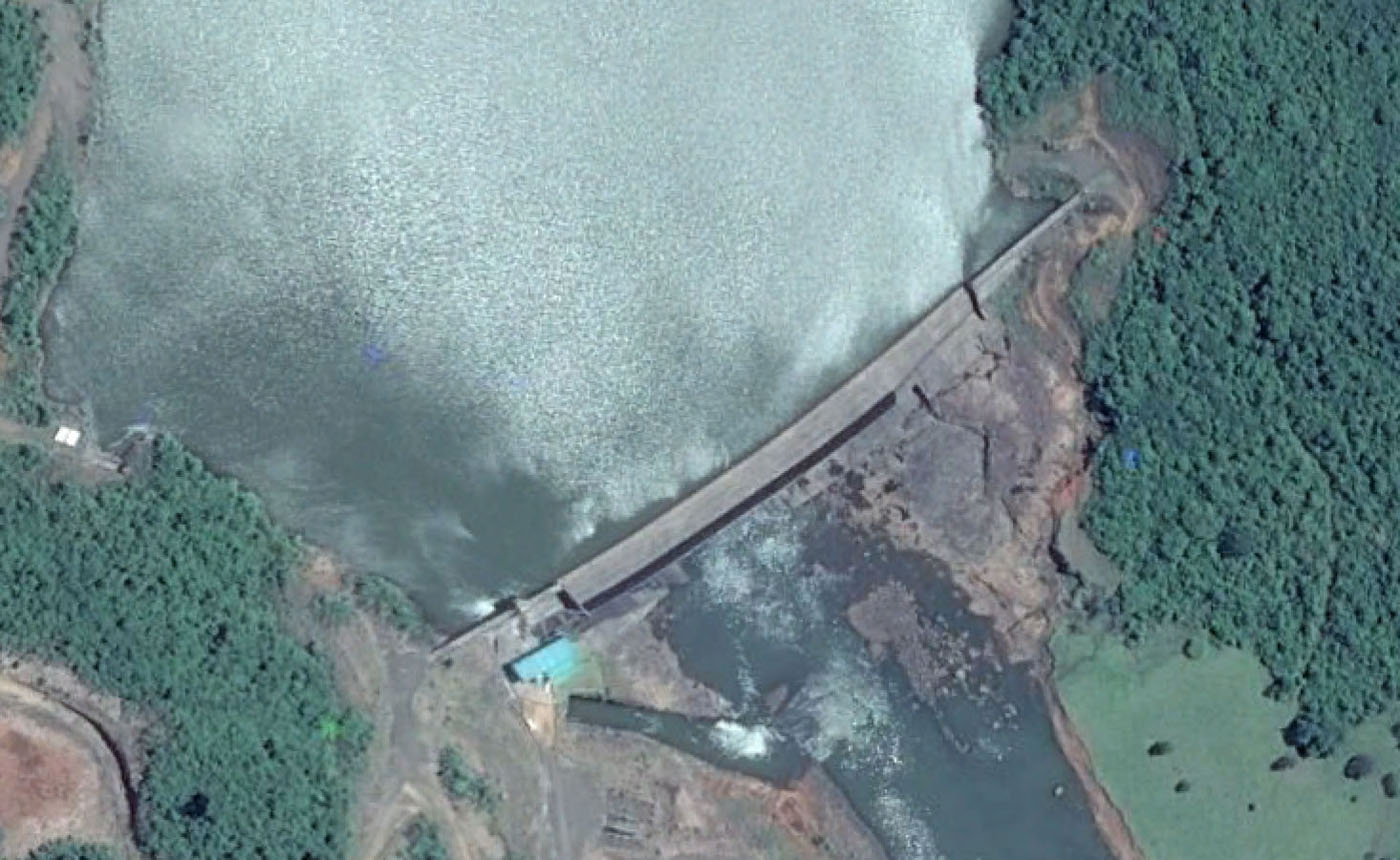

DMS Co-ordinates: 25˚42'13.58"S, 52˚0'6.92"W
DD Co-ordinates: -25.703772, -52.001923
Facings
Upstream
| Slope | Type |
|---|---|
Downstream
| Slope | Type |
|---|---|
Spillway
| Slope | Type |
|---|---|
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 64 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 16 | Natural pozzolan (ASTM Class N) |
