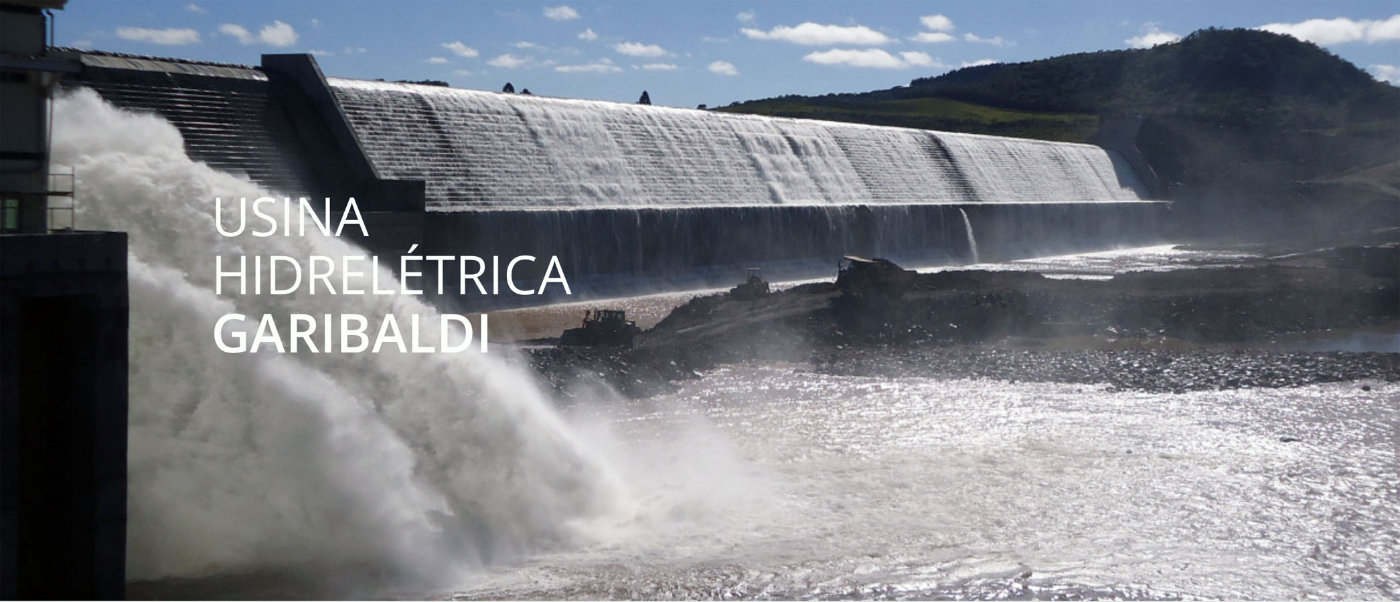

Garibaldi
Download PDF data sheet
Garibaldi completed
Particulars
Owner: unknown
Designer: Intertechne Consultores Associasdos
Contractor: CTG Brasil (previously Triunfo Engergia)
Statistics
Type: Gravity
Purpose(s): Hydropower
Reservoir capacity: 296 m3x106
Height: 42 metres
Length: 517 metres
Volume of RCC: 264 m3x103
Total volume: 382 m3x103
Construction Dates
Start of Project: —/10 (— 2010)
Start of RCC: —/11 (— 2011)
End of RCC: —/12 (— 2012)
End of Project: 09/13 (September 2013)
Country: Brazil
River: Cerro Negro

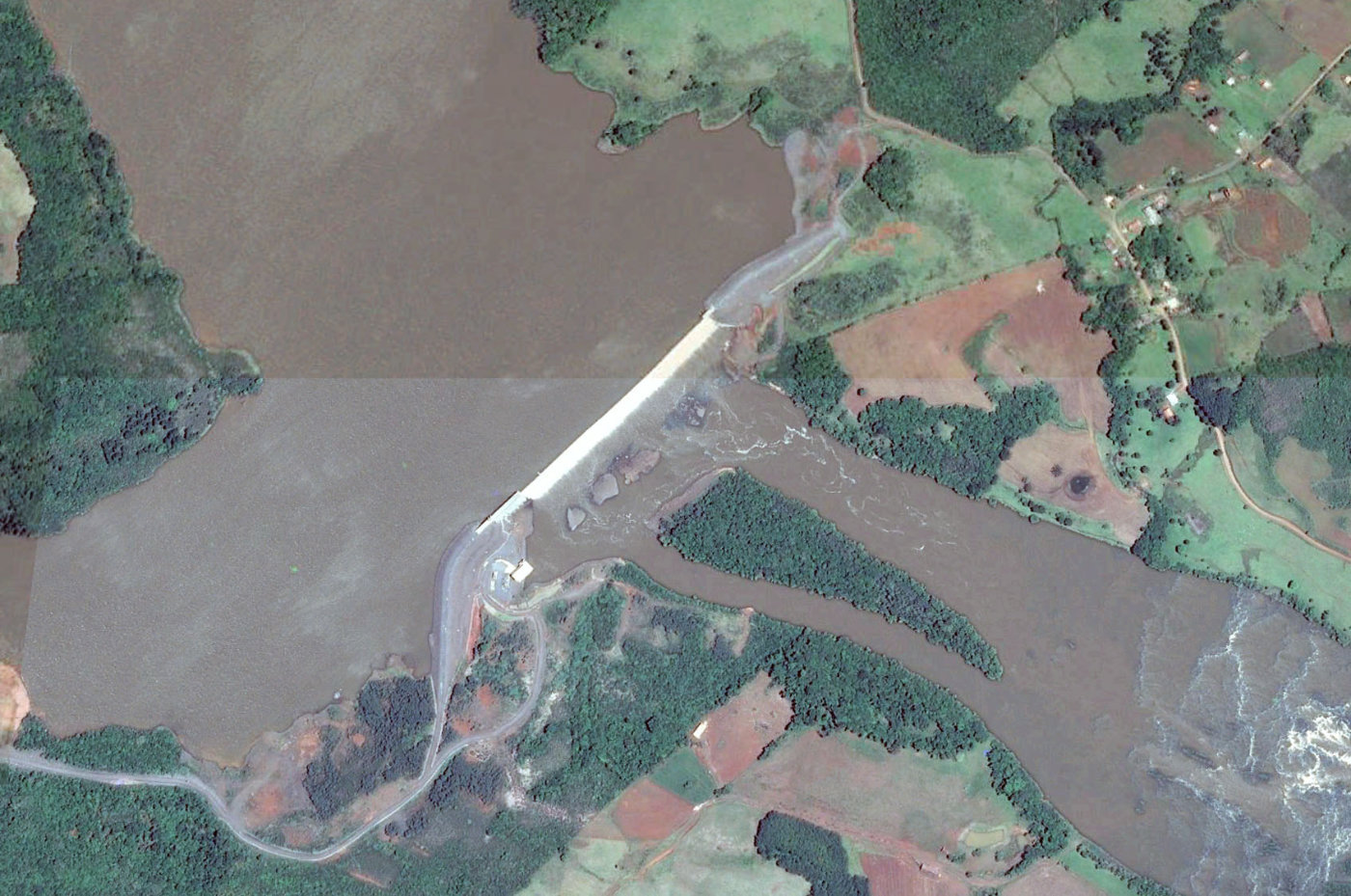

DMS Co-ordinates: 27˚37'32.02"S, 50˚59'4.52"W
DD Co-ordinates: -27.625561, -50.984589
Facings
Upstream
| Slope | Type |
|---|---|
Downstream
| Slope | Type |
|---|---|
Spillway
| Slope | Type |
|---|---|
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
Cementitious material
| Cement (kg/m3) |
|---|
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
