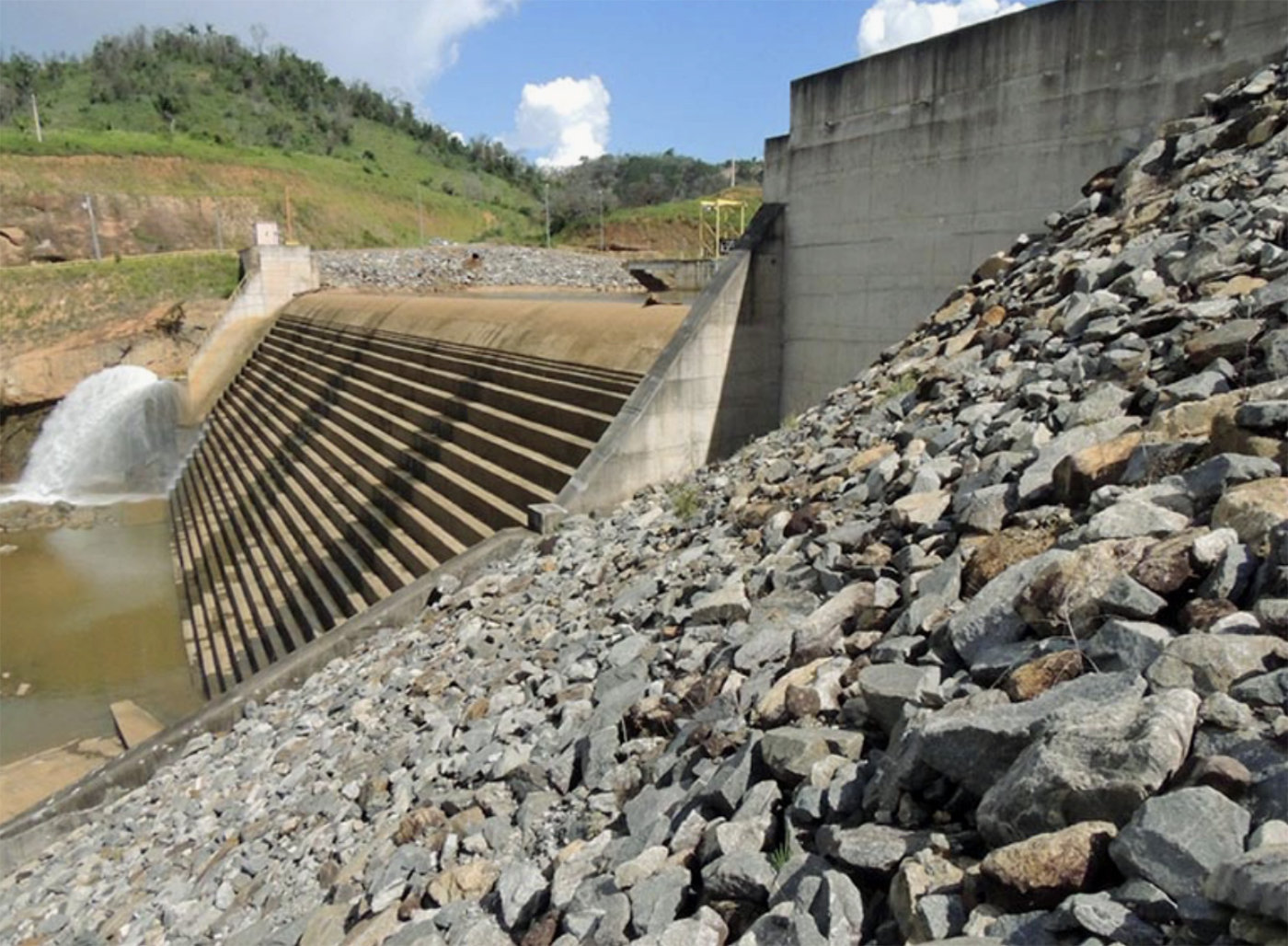

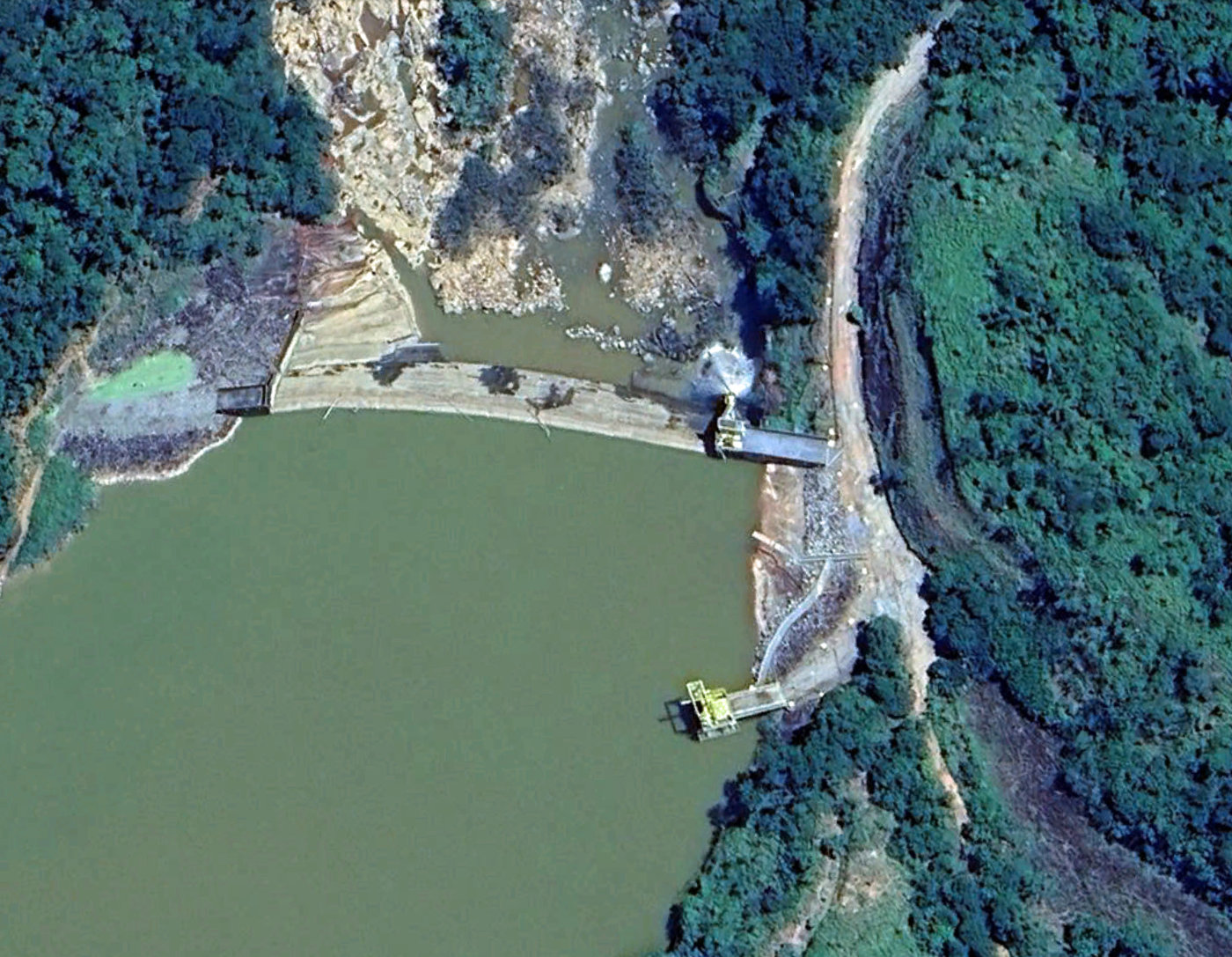

Ilha

Download PDF data sheet
Photo coming soon

Particulars

Owner: unknown

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: unknown

Height: 41 metres

Length: unknown

Volume of RCC: 46 m3x103

Total volume: 76 m3x103

Construction Dates

Start of Project: /06 ( 2006)

Start of RCC: /07 ( 2007)

End of RCC: /07 ( 2007)

End of Project: /08 ( 2008)

Country: Brazil

River: Da Prata

DMS Co-ordinates: unknown

DD Co-ordinates: unknown

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
80
Pozzolan (kg/m3)Pozzolan Type
20Natural pozzolan (ASTM Class N)
