Jim Wilson (formerly Town Wash Detention)

Particulars

Owner: unknown

Designer: CH2M - Hill, Redding, California

Contractor: Progressive Contracting Inc.

Reservoir capacity: unknown

Height: 18 metres

Length: 264 metres

Volume of RCC: 43 m³x10³

Total volume: 45 m³x10³

Start of Project: 01/92 (January 1992)

Start of RCC: 03/92 (March 1992)

End of RCC: 05/92 (May 1992)

End of Project: 06/92 (June 1992)

Country: USA

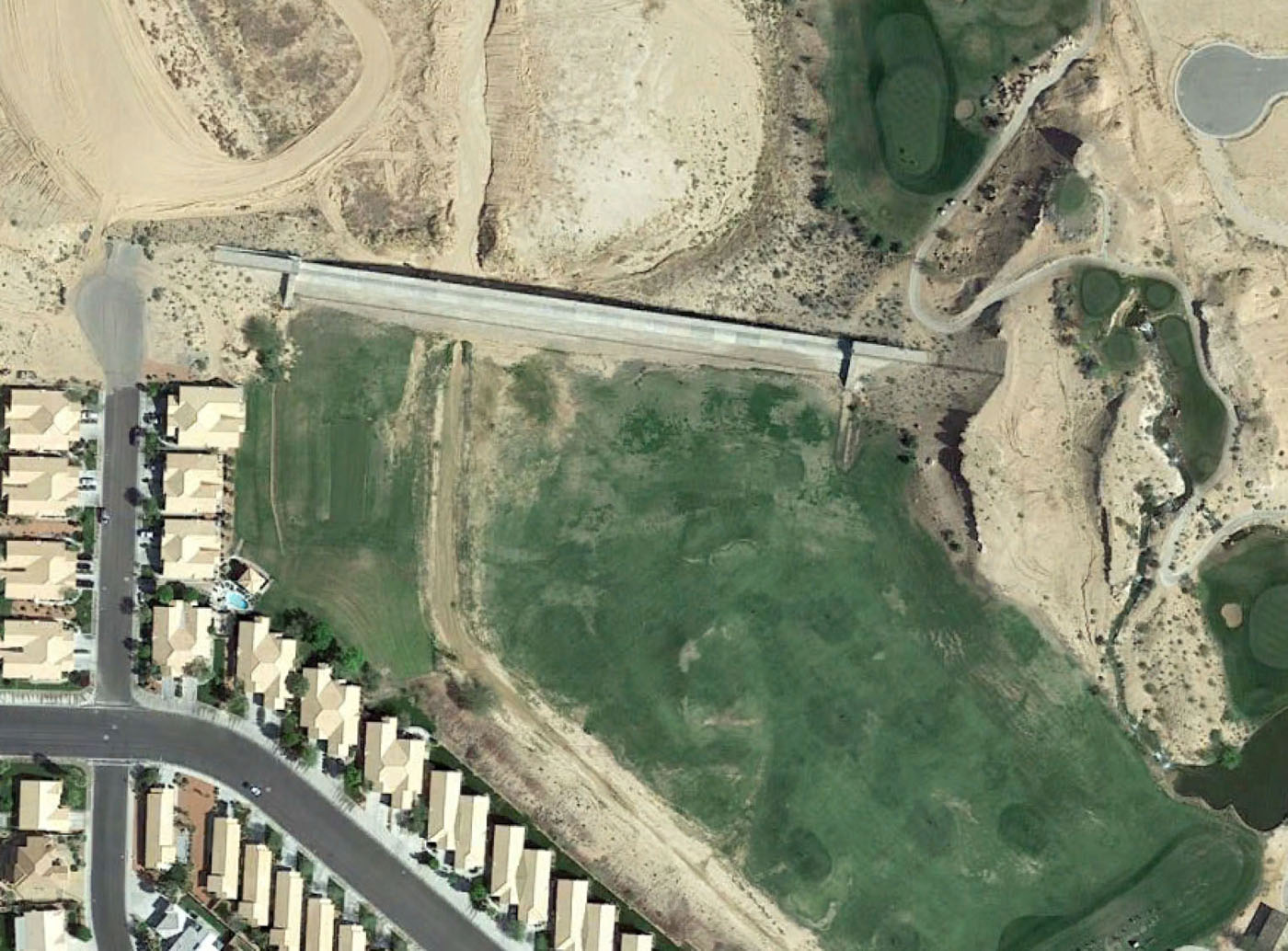

DMS Co-ordinates: 36˚49'32.46"N, 114˚04'22.48"W

DD Co-ordinates: 36.825684, -114.072914

Slope	Type
Vertical	Slip-formed/extruded facing elements

Slope	Type
1.50	RCC against formwork

Slope	Type

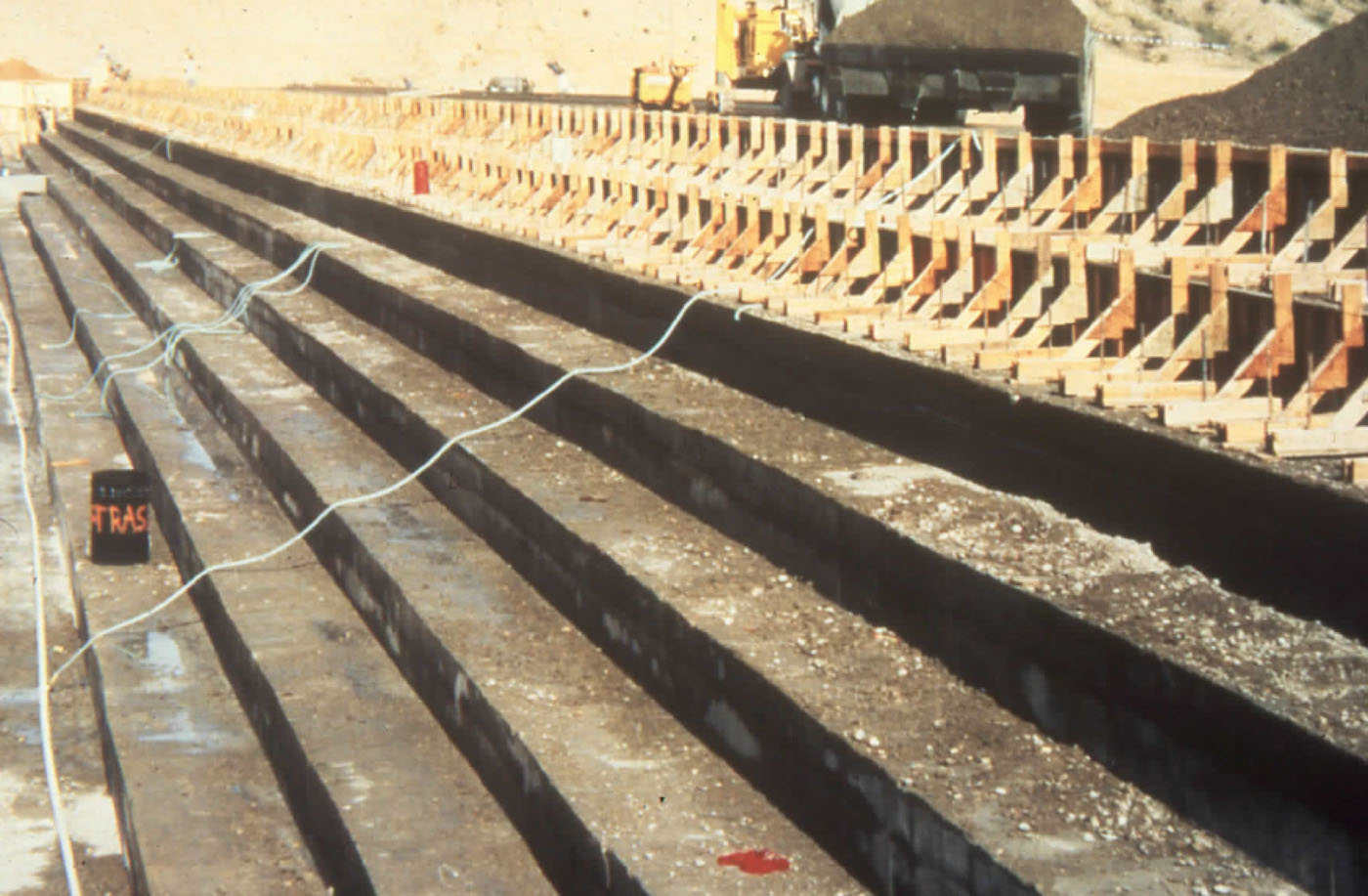

1.50	RCC against formwork [stepped face]
	Unformed face of RCC [stepped face]

Layers (mm)	Lifts (mm)
200	200

Cement (kg/m³)
107

Pozzolan (kg/m³)	Pozzolan Type
71	Low-lime flyash (ASTM Class F)
