Quatorze (XIV) de Julho

Download PDF data sheet

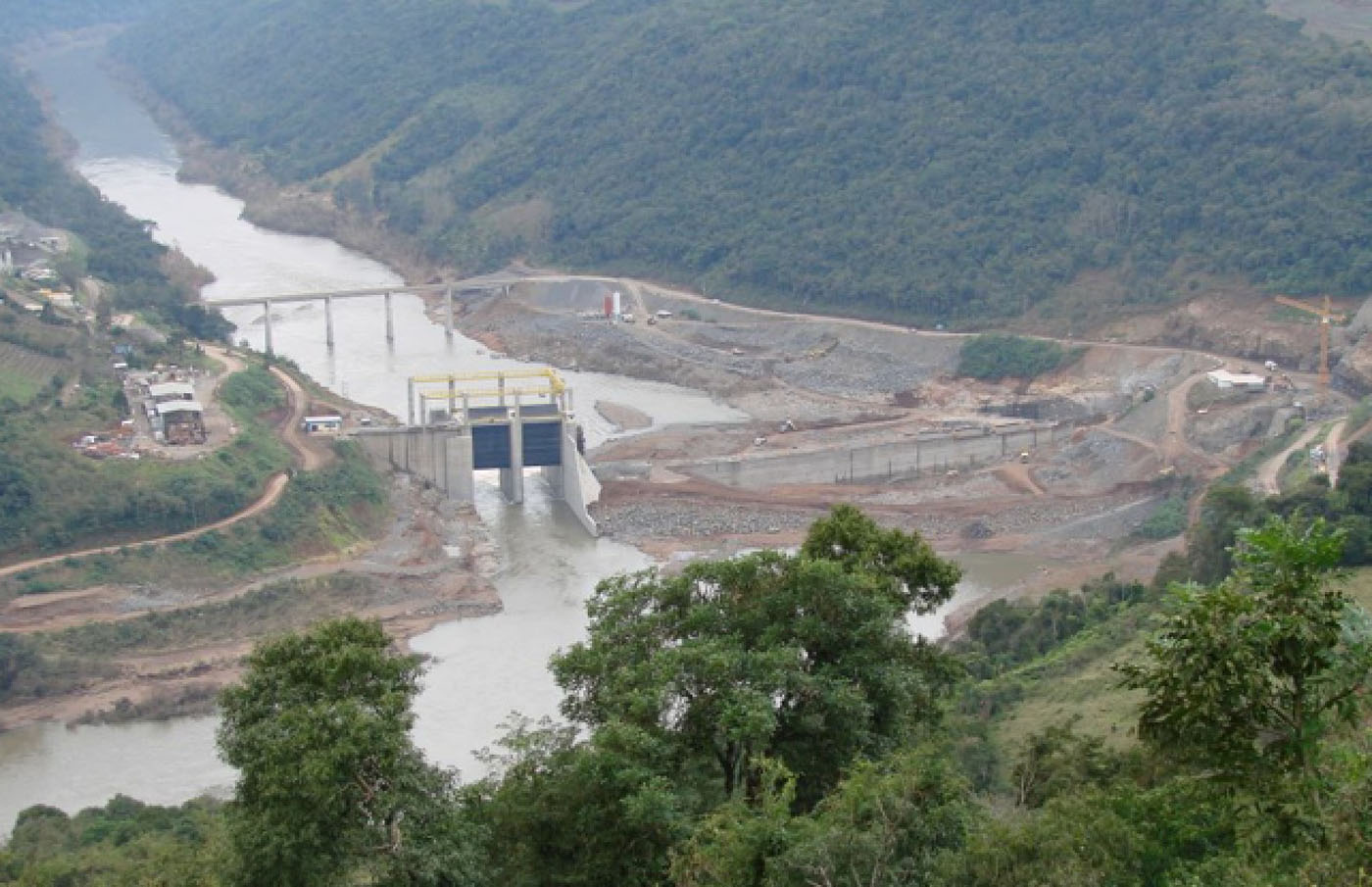

Quatorze (XIV) de Julho completed

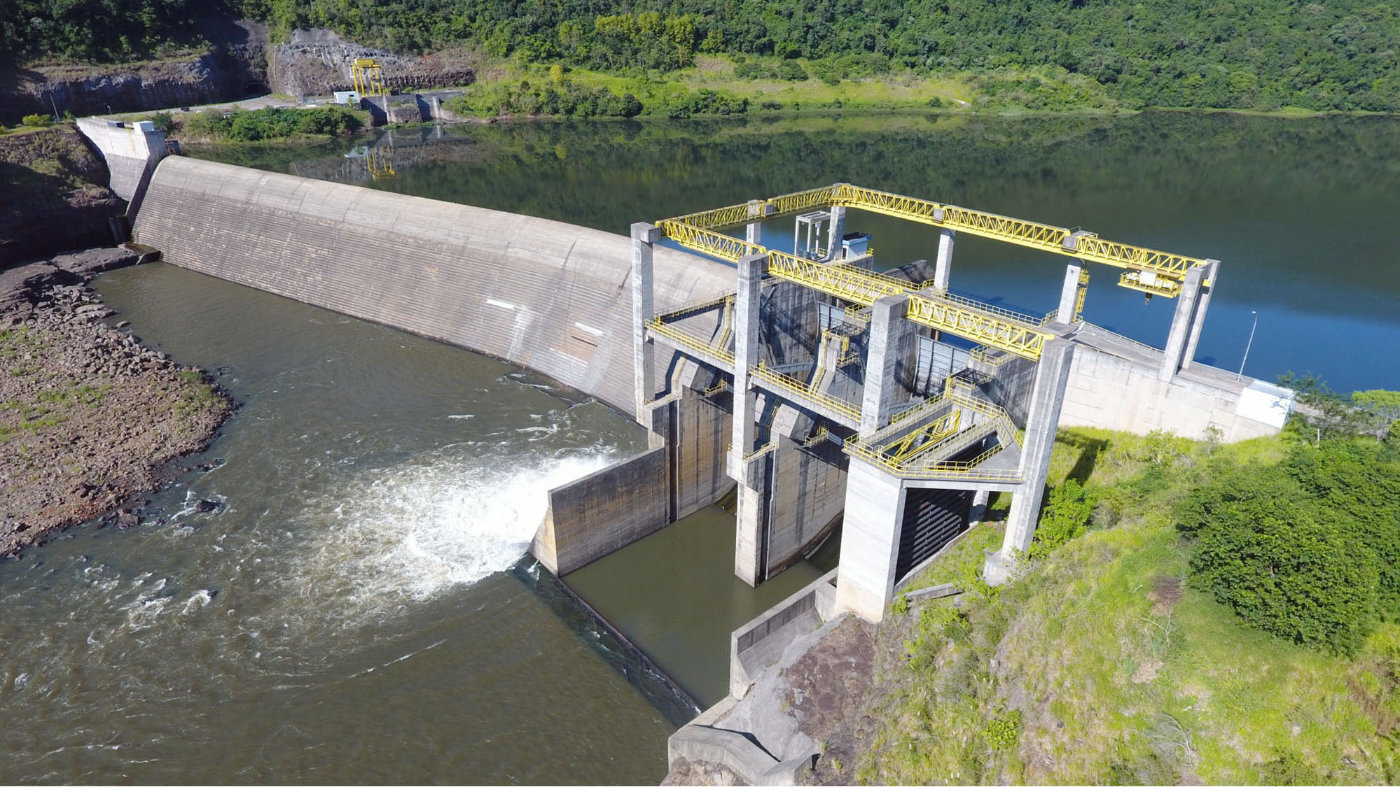

Quatorze (XIV) de Julho completed

Particulars

Owner: unknown

Designer: Engevix Engenharia, CCCC and SBB

Contractor: Camargo Correa

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 55 m3x106

Height: 37 metres

Length: 281 metres

Volume of RCC: 75 m3x103

Total volume: 212 m3x103

Construction Dates

Start of Project: /05 ( 2005)

Start of RCC: /06 ( 2006)

End of RCC: /07 ( 2007)

End of Project: 10/08 (October 2008)

Country: Brazil

River: Das Antas

DMS Co-ordinates: 29˚3'54.67"S, 51˚40'27.9"W

DD Co-ordinates: -29.065186, -51.674419

Facings

Upstream

SlopeType
Vertical

Downstream

SlopeType
1.30

Spillway

SlopeType
1.30

Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
75
Pozzolan (kg/m3)Pozzolan Type
15Natural pozzolan (ASTM Class N)
