Yanagawa

Download PDF data sheet
Photo coming soon

Particulars

Owner: unknown

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Flood Control / Hydropower / Water Supply

Reservoir capacity: 19 m3x106

Height: 77 metres

Length: 243 metres

Volume of RCC: unknown

Total volume: 233 m3x103

Construction Dates

Start of Project: /15 ( 2015)

Start of RCC: /18 ( 2018)

End of RCC: /21 ( 2021)

End of Project: /23 ( 2023)

Country: Japan

River: Yana

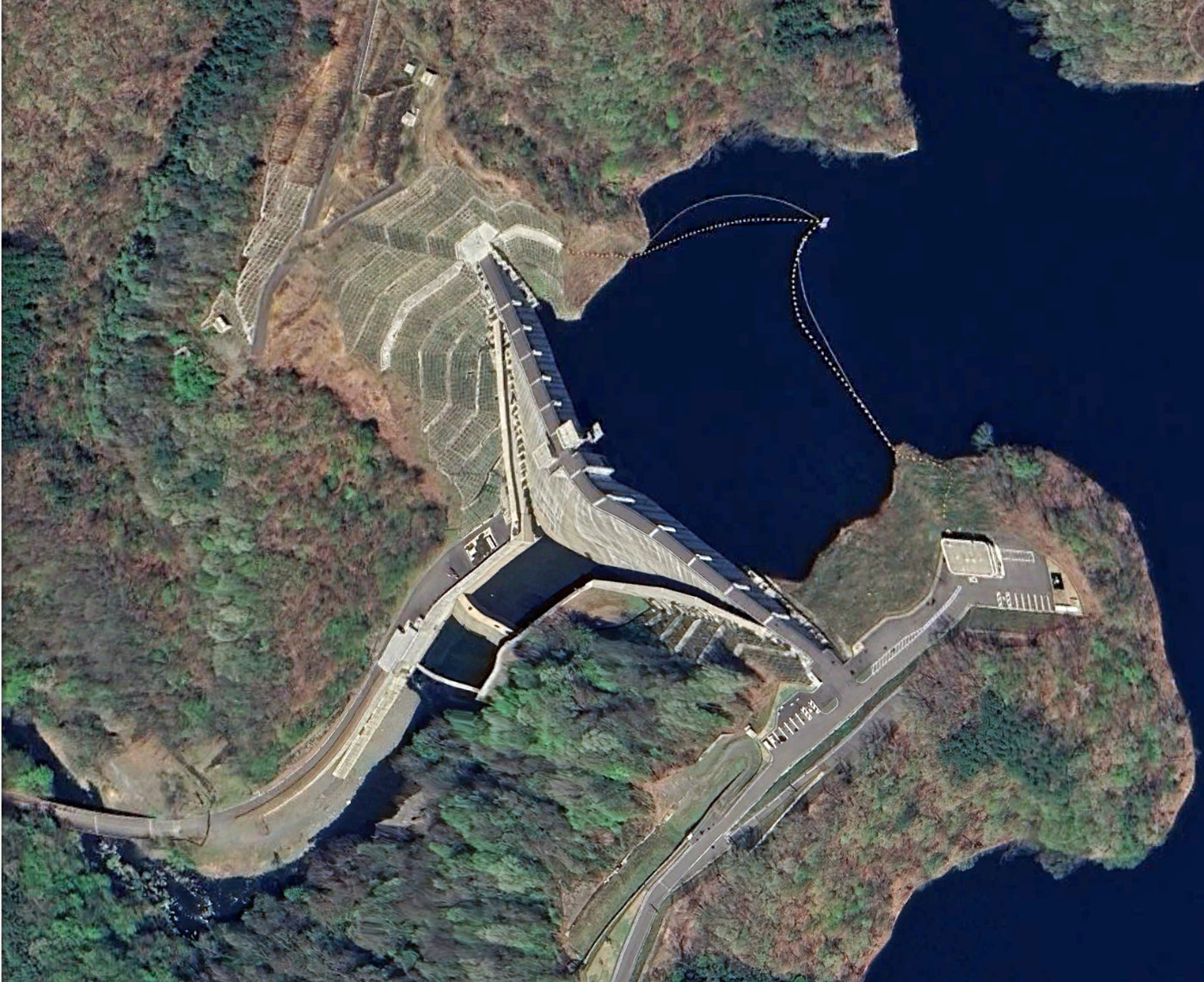

DMS Co-ordinates: 39˚40'22.62"N, 141˚15'46.93"E

DD Co-ordinates: 39.672951, 141.263031

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
