Huanghuazhai
Download PDF data sheet

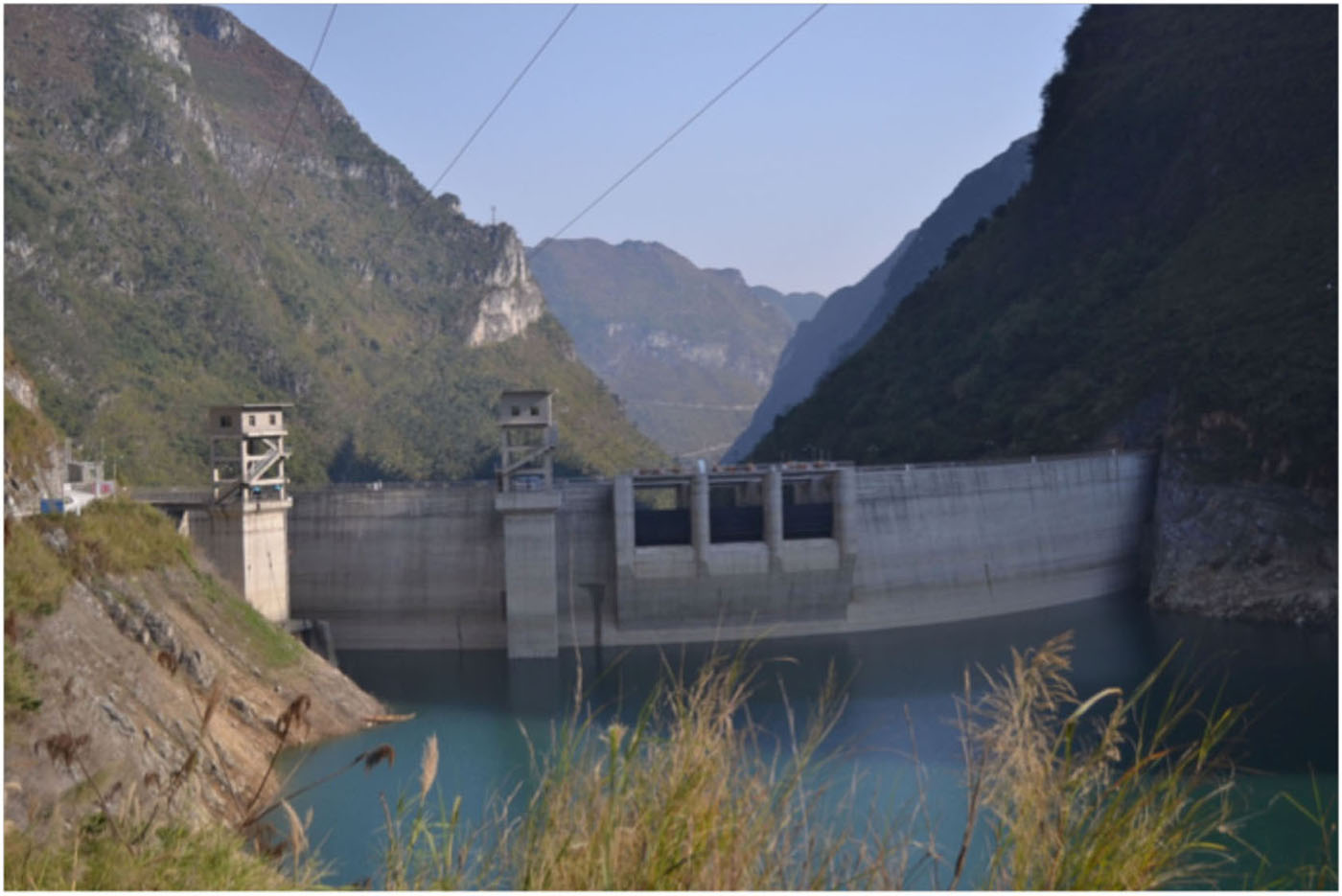

Huanghuazhai completed
Particulars
Owner: unknown
Designer: Guizhou Survey & Design Research Institute for Water Resources and Hydropower
Contractor: unknown
Statistics
Type: Thin Arch
Purpose(s): Hydropower
Reservoir capacity: 1748 m3x106
Height: 110 metres
Length: 253 metres
Volume of RCC: 280 m3x103
Total volume: 292 m3x103
Construction Dates
Start of Project: 07/06 (July 2006)
Start of RCC: —/07 (— 2007)
End of RCC: —/08 (— 2008)
End of Project: —/08 (— 2008)
Country: China
River: Getu

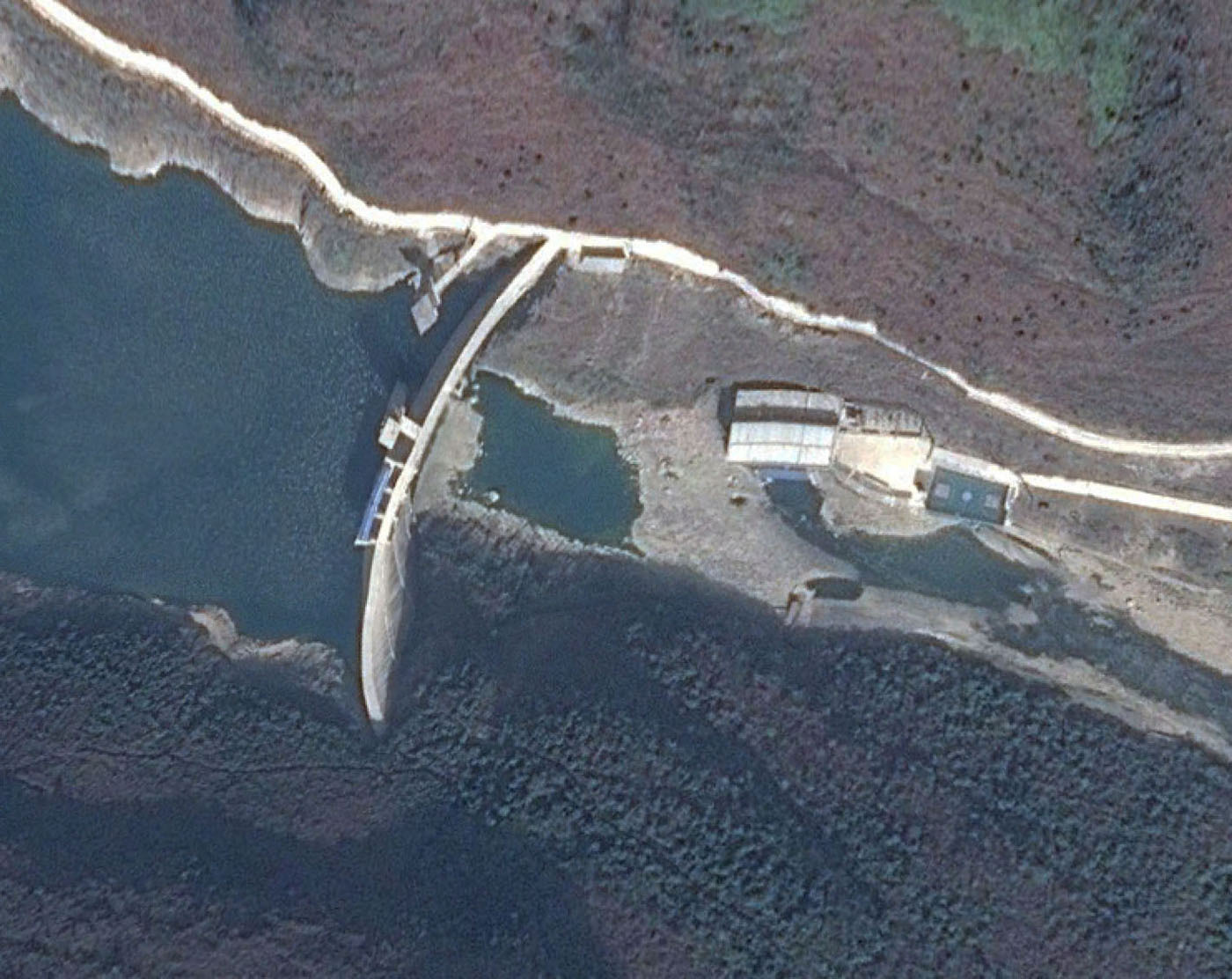

DMS Co-ordinates: 25˚40'5.08"N, 106˚26'26.51"E
DD Co-ordinates: 25.668077, 106.440697
Facings
Upstream
| Slope | Type |
|---|---|
Downstream
| Slope | Type |
|---|---|
Spillway
| Slope | Type |
|---|---|
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
Cementitious material
| Cement (kg/m3) |
|---|
| 52 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 96 | Low-lime flyash (ASTM Class F) |
